PESD5V0L4UG

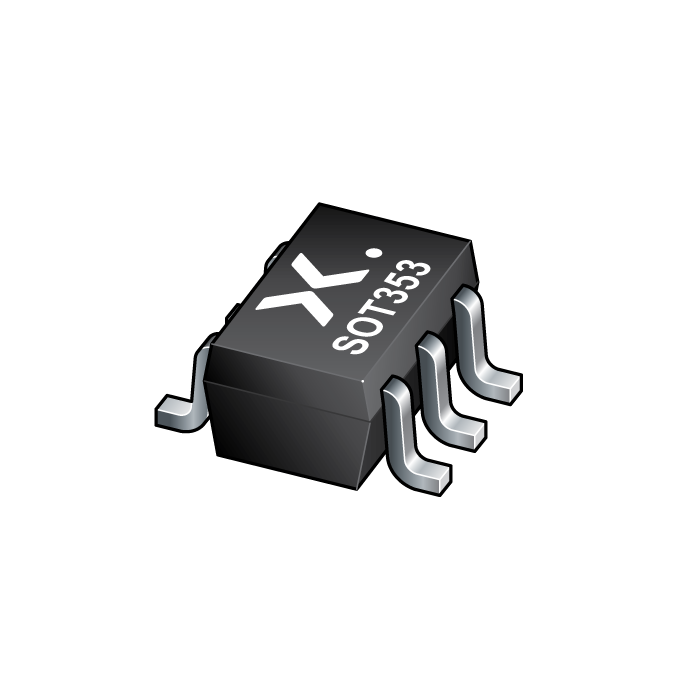

图像仅供参考
请参阅产品规格
PESD5V0L4UG
-
商品编号:
PESD5V0L4UG,115
-
批次:
2509+
-
简述:
Low capacitance unidirectional quadruple ESD protection diode arrays
-
描述:
Low capacitance unidirectional quadruple ElectroStatic Discharge (ESD) protection diode array in a very small SOT353 (SC-88A) Surface-Mounted Device (SMD) plastic package, designed to protect up to four signal lines from the damage caused by ESD and other transients.
- 数据手册:
库存: 0
特性
ESD protection of up to four lines
Low diode capacitance
Max. peak pulse power: PPP = 30 W
Low clamping voltage: VCL = 13 V
Ultra low leakage current: IRM = 5 nA
ESD protection up to 20 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPP = 2.5 A
目标应用
Computers and peripherals
Communication systems
Audio and video equipment
Portable electronics
Cellular handsets and accessories
Subscriber Identity Module (SIM) card protection
