PESD5V0L1USF
图像仅供参考
请参阅产品规格
PESD5V0L1USF
-
商品编号:
PESD5V0L1USF,315
-
简述:
Low capacitance unidirectional ESD protection diode
-
描述:

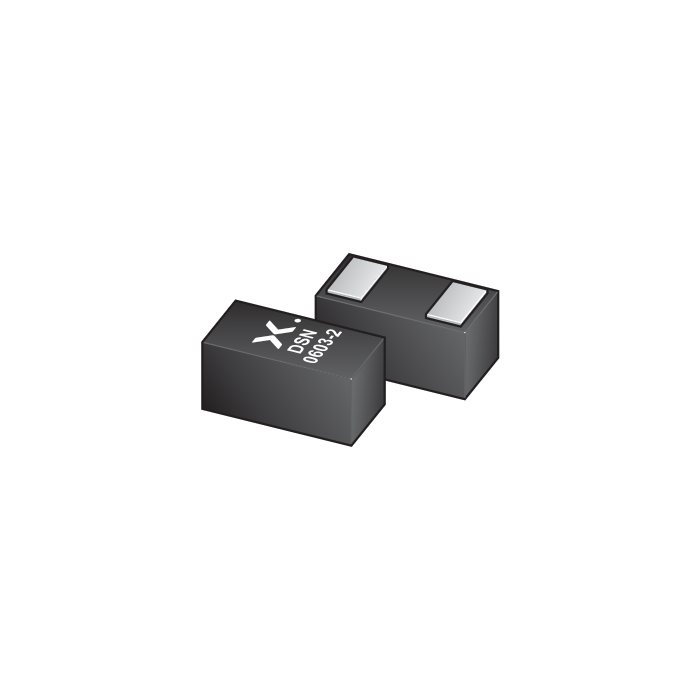

Low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is encapsulated in a leadless super small DSN0603-2 (SOD962) Surface-Mounted Device (SMD) package.
- 数据手册:
库存: 0
特性
ESD protection of one line
Low diode capacitance Cd = 12 pF
Super small SMD package
Ultra low leakage current IRM < 1 nA
ESD protection up to 30 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61643-321 (surge); IPPM = 1.2 A
目标应用
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
Communication systems
Portable electronics
数据手册
