图像仅供参考
请参阅产品规格
-
商品编号:
PESD5V0H1BSNYL
-
简述:
Extremely low capacitance bidirectional ESD protection diode
-
描述:

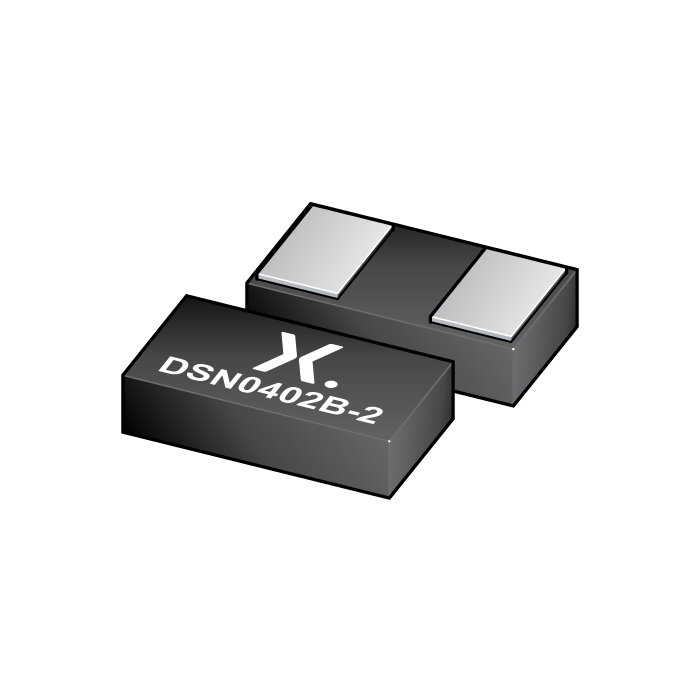

Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS protection family. This device is housed in a DSN0402B-2 (SOD992B) leadless ultra small Surface-Mounted Device (SMD) package designed to protect one signal line from the damage caused by ESD and other transients.
- 数据手册:
特性
Bidirectional ESD protection of one line
Extremely low diode capacitance Cd = 0.17 pF
Extremely low insertion loss αIL : -0.45 dB at 10 GHz
Extremely low return loss αRL : -18.5 dB at 10 GHz
Extremely low clamping voltage to protect sensitive I/Os
Extremely low inductance protection path to ground
Ultra small SMD package
目标应用
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
Thunderbolt
