商品编号:
PESD5V0F1BRLDYL
-
批次:
2334+
-
简述:
Femtofarad bidirectional ESD protection diode
-
描述:

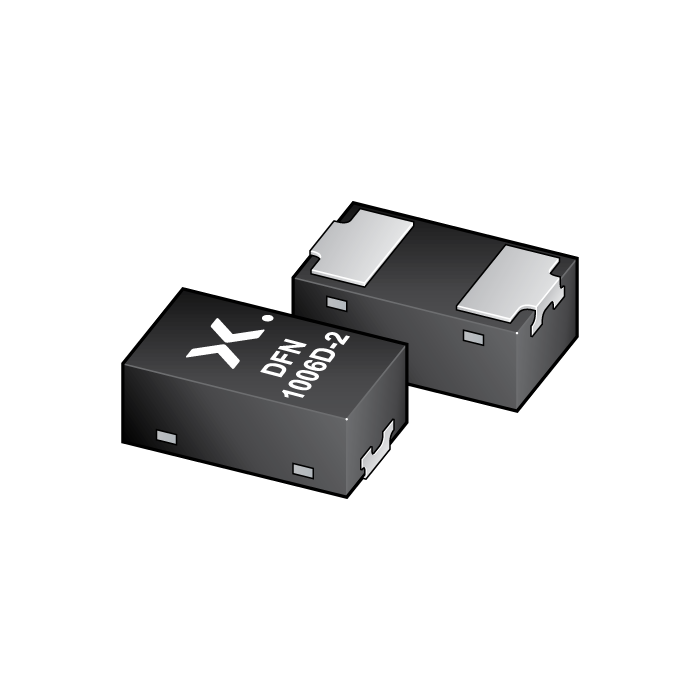

Femtofarad bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is encapsulated in a leadless ultra small DFN1006D-2 (SOD882D) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
The combination of extremely low capacitance, high ESD maximum rating and ultra small package makes the device ideal for high-speed data line protection and antenna protection applications.
- 数据手册:
特性
Bidirectional ESD protection of one line
Femtofarad capacitance: Cd = 400 fF
Low ESD clamping voltage: 30 V at 30 ns and ±8 kV
Very low leakage current: IRM = 1 nA
ESD protection up to 10 kV (contact) and 15 kV (air)
IEC 61000-4-2; level 4 (ESD)
Package height typ. 0.37 mm
目标应用
10/100/1000 Mbit/s Ethernet
High-speed data lines
SIM card protection
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
Audio and video equipment
Antenna protection
