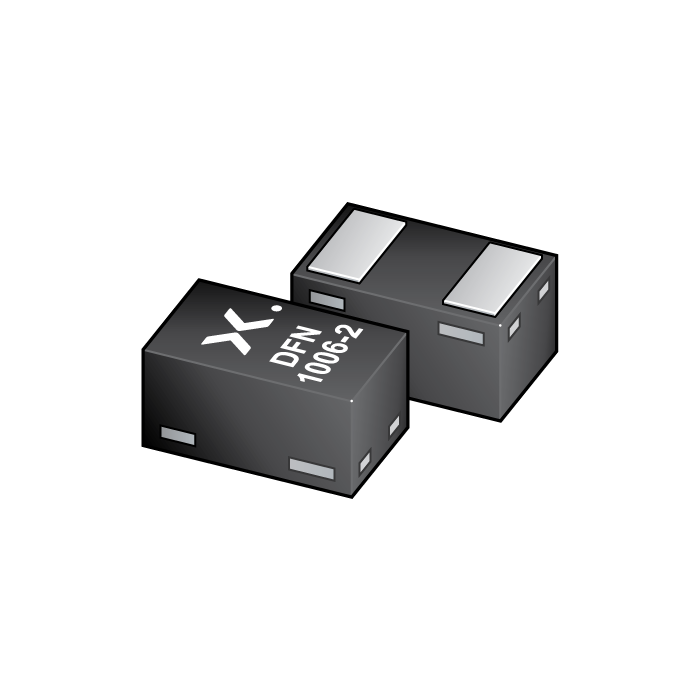

图像仅供参考
请参阅产品规格
-
商品编号:
PESD5V0F1BL-QYL
-
批次:
2525+
-
简述:
Q - Femtofarad bidirectional ESD protection diode
-
描述:
Femtofarad bidirectional ElectroStatic Discharge (ESD) protection diode in a leadless ultra small SOD882 Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients. The combination of extremely low capacitance, high ESD maximum rating and ultra small package makes the device ideal for high-speed data line protection and antenna protection applications.
- 数据手册:
特性
Bidirectional ESD protection of one line
Femtofarad capacitance: Cd = 400 fF
Low ESD clamping voltage: 30 V at 30 ns and ± 8 kV
Very low leakage current: IRM < 1 nA
ESD protection up to 10 kV
IEC 61000-4-2; level 4 (ESD)
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
10/100/1000 Mbit/s Ethernet
Portable electronics
FireWire
Communication systems
High-speed data lines
Computers and peripherals
Subscriber Identity Module (SIM) card protection
Audio and video equipment
Cellular handsets and accessories
Antenna protection
