商品编号:
PESD5V0C2UMYL
-
简述:
Extremely low capacitance unidirectional ESD protection diode array
-
描述:

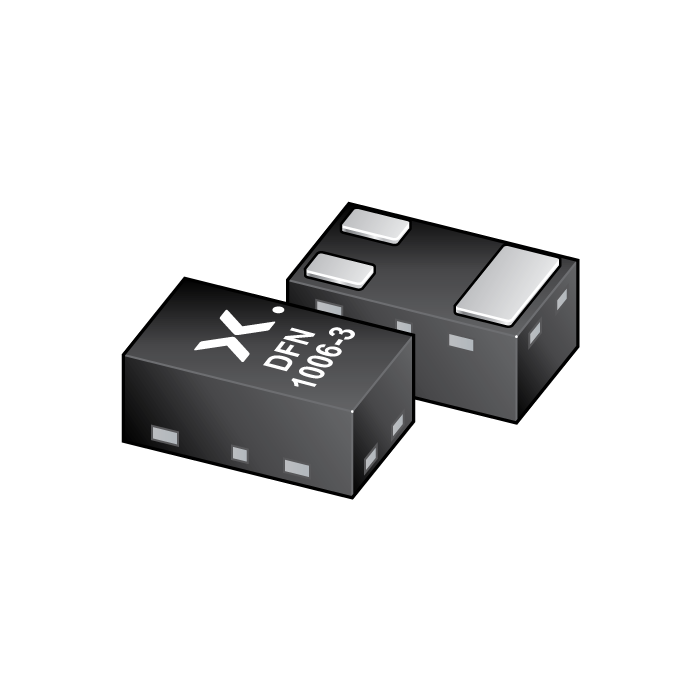

Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode array, part of the TrEOS protection family. This device is housed in a DFN1006-3 (SOT883-2) leadless ultra small Surface-Mounted Device (SMD) plastic package, designed to protect up to two signal lines from the damage caused by ESD and other transients.
- 数据手册:
特性
Unidirectional ESD protection of one line pair
VRWM = 5 V device
Very high surge robustness of 6.5 A for a 8/20 μs pulse
Very low diode capacitance: Cd = 0.5 pF typical
- Extremely low clamping voltage to protect sensitive I/Os
ESD protection up to ±15 kV according to IEC 61000-4-2
Leadless ultra small SOT883-2 surface mount package
IEC61000-4-4 robust up to level 4 (corresponds to 40 A into a 50 Ohm termination)
目标应用
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
USB2.0, USB3.0 data lines at 5 Gbps
