商品编号:
PESD5V0C2BDFZ
-
批次:
2329+
-
简述:
Extremely low clamping low capacitance ESD protection
-
描述:

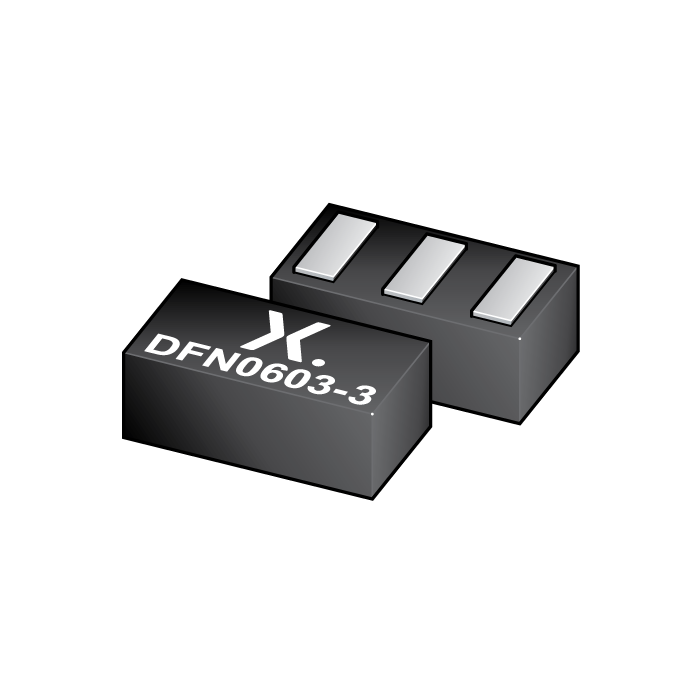

Symmetrical bidirectional ElectroStatic Discharge (ESD) protection diode array, part of the TrEOS protection family. This device is housed in a DFN0603-3 (SOT8013) leadless ultra small Surface-Mounted Device (SMD) package designed to protect two signal lines from the damage caused by ESD and other transients.
- 数据手册:
特性
Bidirectional ESD protection of two lines
Very low diode capacitance Cd = 0.21 pF
Extremely low clamping to protect sensitive I/Os
Extremely low-inductance protection path to ground
Extremely symmetrical layout
ESD protection up to ±20 kV according to IEC 61000-4-2; surge robustness 8.5 A 8/20 μs
Ultra small SMD package
Placed on one differential line pair, almost no extra PCB space demand for protection
目标应用
Thunderbolt, USB3.2 and HDMI2.1 data lines
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
