图像仅供参考
请参阅产品规格
-
商品编号:
PESD4USB3UBTTS-QJ
-
简述:
Q - Extremely low capacitance unidirectional ESD protection diode array
-
描述:
This unidirectional ESD protection device is designed to protect high-speed interfaces such as SuperSpeed USB 3.2, HDMI, DisplayPort, external Serial Advanced Technology Attachment (eSATA), Low Voltage Differential Signaling (LVDS), and Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes) against ElectroStatic Discharge (ESD).

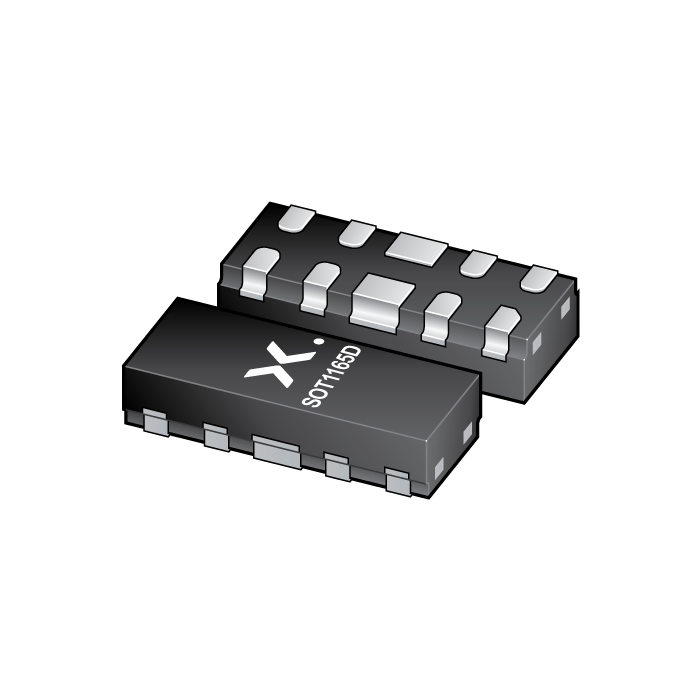

The device is encapsulated in a leadless small DFN2510D-10 (SOT1165D) plastic package and provides ESD protection up to 15 kV exceeding IEC 61000-4-2 level 4 and fulfilling ISO 10605.
- 数据手册:
特性
System-level ESD protection for USB 2.0 and SuperSpeed USB 3.2, HDMI, DisplayPort, eSATA and LVDS
VRWM = 3.3 V device
Typical line capacitance of only 0.4 pF
Outstanding system protection: extremely deep snap-back combined with dynamic resistance of 0.2 Ω
ESD protection level up to ±15 kV (IEC 61000-4-2, level 4; ISO 10605)
Matched 0.5 mm trace spacing and side-wettable flanks (SWF) for AOI
Design-friendly ‘pass-through’ signal routing
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
Infotainment systems: USB 2.0, USB 3.2 and HDMI 2.1
Automotive A/V monitors, display and cameras
SerDes: GMSL, APIX, FPD-Link and LVDS
