PESD3V3X4UHC
图像仅供参考
请参阅产品规格
PESD3V3X4UHC
-
商品编号:
PESD3V3X4UHCYL
-
批次:
2340+
-
简述:
4-fold ESD protection array for high-speed interfaces
-
描述:
4-fold unidirectional ElectroStatic Discharge (ESD) protection array designed to protect up to four lines from the damage caused by ESD and other transients.

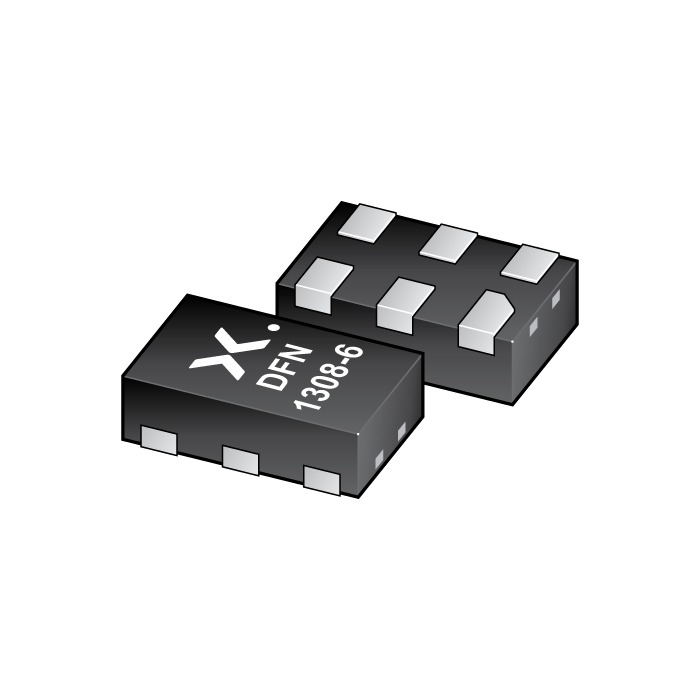

The device is housed in a leadless extremely thin small DFN1308-6 (SOT8006) Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 0
特性
Unidirectional ESD protection of up to 4 lines
Very high surge robustness; IPP = 14.2 A (average measured) for 8/20 µs pulse
Very low clamping voltage: VCL = 3.7 V typ. for 11 A 8/20 µs pulse
ESD protection up to 25 kV
Very low dynamic resistance Rdyn = 0.15 Ω (TLP)
目标应用
ESD protection for high-speed interfaces in portable communication, consumer devices and computing devices.
