vp_PESD3V3T1BLD
图像仅供参考
请参阅产品规格
vp_PESD3V3T1BLD
-
商品编号:
PESD3V3T1BLD-QYL
-
简述:
Q - Bidirectional ESD protection diode
-
描述:
Bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients.

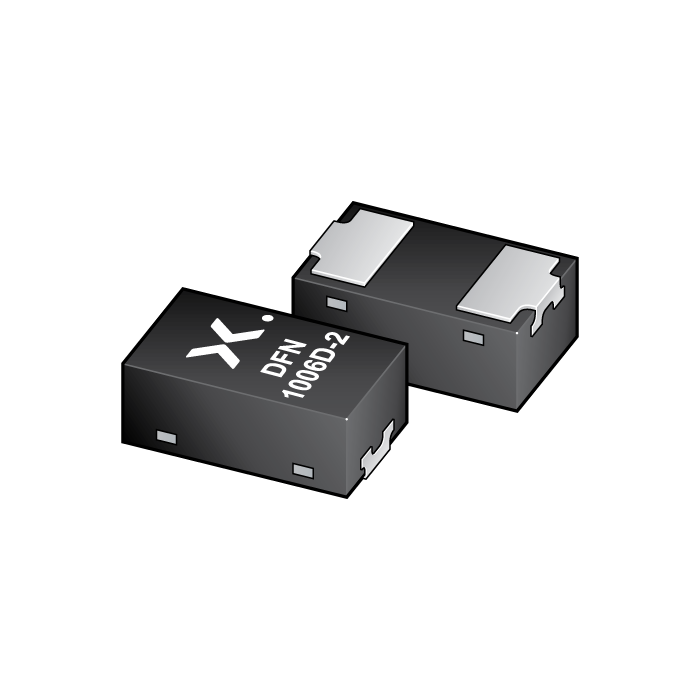

The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
- 数据手册:
库存: 99999999
特性
Bidirectional ESD protection of one line
Ultra small SMD plastic package 1 x 0.6 x 0.37 mm
Side-wettable flanks
ESD protection up to 30 kV
Very high surge robustness; IPP = 12 A for 8/20 µs; average measured
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
ESD and surge protection for interface lines
数据手册
