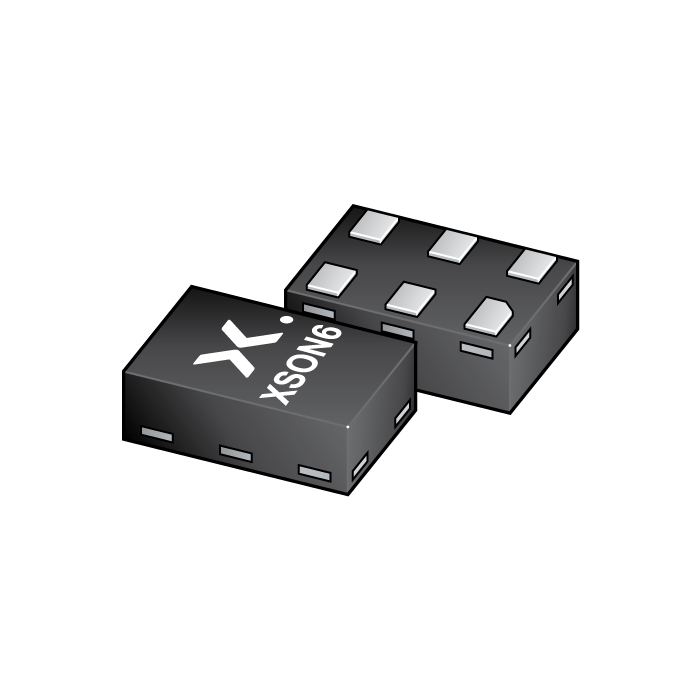

PESD3V3S4UF
图像仅供参考
请参阅产品规格
PESD3V3S4UF
-
商品编号:
PESD3V3S4UF,115
-
简述:
Unidirectional quadruple ESD protection diode arrays
-
描述:
Unidirectional quadruple ElectroStatic Discharge (ESD) protection diode arrays in a small SOT886 Surface-Mounted Device (SMD) plastic package designed to protect up to four signal lines from the damage caused by ESD and other transients.
- 数据手册:
库存: 99999999
特性
ESD protection of up to four lines
ESD protection up to 30 kV
Max. peak pulse power: PPP = 110 W
IEC 61000-4-2; level 4 (ESD)
Low clamping voltage: VCL = 11 V
IEC 61000-4-5 (surge); IPP = 10 A
Ultra low leakage current: IRM = 4 nA
AEC-Q101 qualified
目标应用
Computers and peripherals
Communication systems
Audio and video equipment
Portable electronics
Cellular handsets and accessories
