PESD3V3S1BL
图像仅供参考
请参阅产品规格
PESD3V3S1BL
-
商品编号:
PESD3V3S1BLYL
-
批次:
2443+
-
简述:
Low capacitance bidirectional ESD protection diode
-
描述:

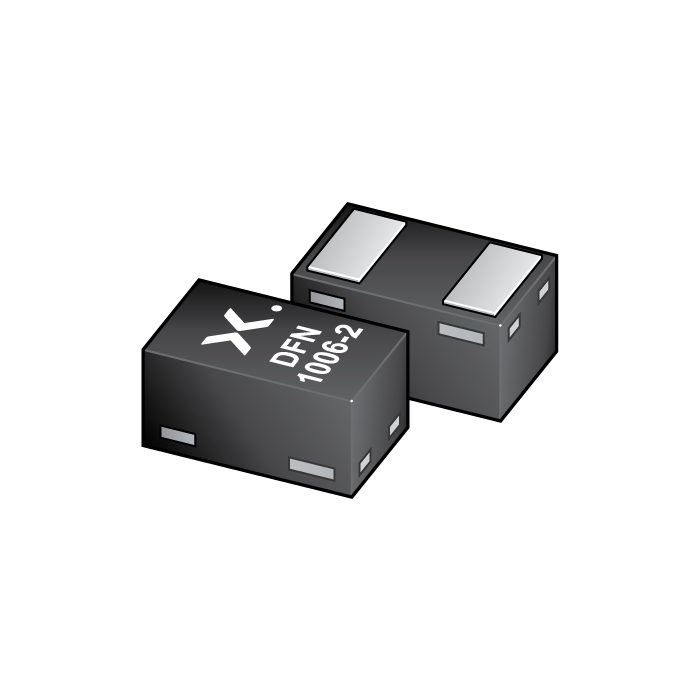

Low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a leadless ultra small SOD882 (DFN1006-2) Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 10000
特性
Bidirectional ESD protection of one line
Ultra small SMD plastic package
Reverse standoff voltage VRWM = 3.3 V
Low clamping voltage: VCL = 9.3 V @ 15 A 8/20 µs
Ultra low leakage current: IRM < 1 nA
ESD protection up to 30 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPPM = 15 A
IEC 61000-4-5 (surge); IPPM = 17.5 A (average measured)
AEC-Q101 qualified
目标应用
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
