PESD3V3L5UF
图像仅供参考
请参阅产品规格
PESD3V3L5UF
-
商品编号:
PESD3V3L5UF,115
-
批次:
2524+
-
简述:
Low capacitance unidirectional fivefold ESD protection diode array
-
描述:

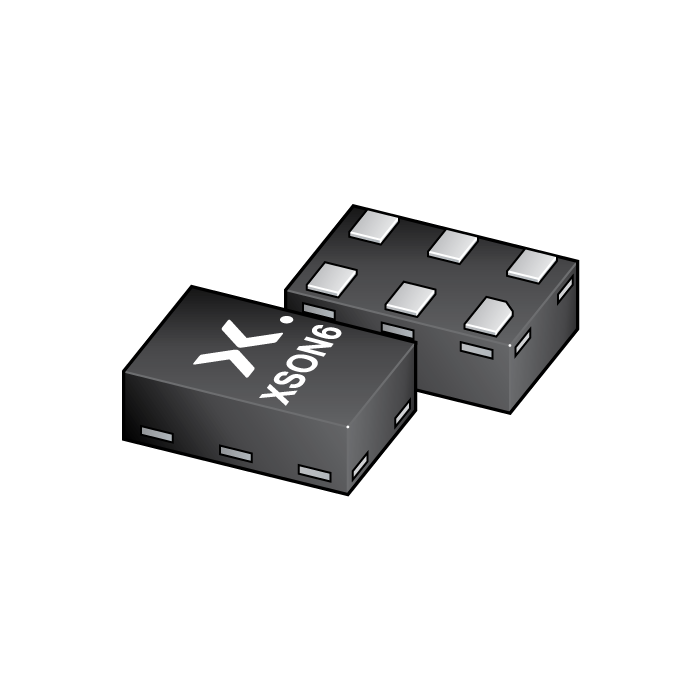

Low capacitance unidirectional fivefold ElectroStatic Discharge (ESD) protection diode array in a leadless ultra small XSON6 (SOT886) Surface-Mounted Device (SMD) plastic package, designed to protect up to five unidirectional signal lines from the damage caused by ESD and other transients.
- 数据手册:
库存: 5000
特性
ESD protection of up to five lines
Low diode capacitance
Max. peak pulse power: PPPM = 25 W
Low clamping voltage: VCL = 12 V
Ultra low leakage current: IRM = 75 nA
ESD protection up to 20 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPPM = 2.5 A
目标应用
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
Communication systems
Portable electronics
SIM card protection
