PESD3V3L4UW
图像仅供参考
请参阅产品规格
PESD3V3L4UW
-
商品编号:
PESD3V3L4UW,115
-
批次:
2350+
-
简述:
Low capacitance unidirectional quadruple ESD protection diode arrays
-
描述:

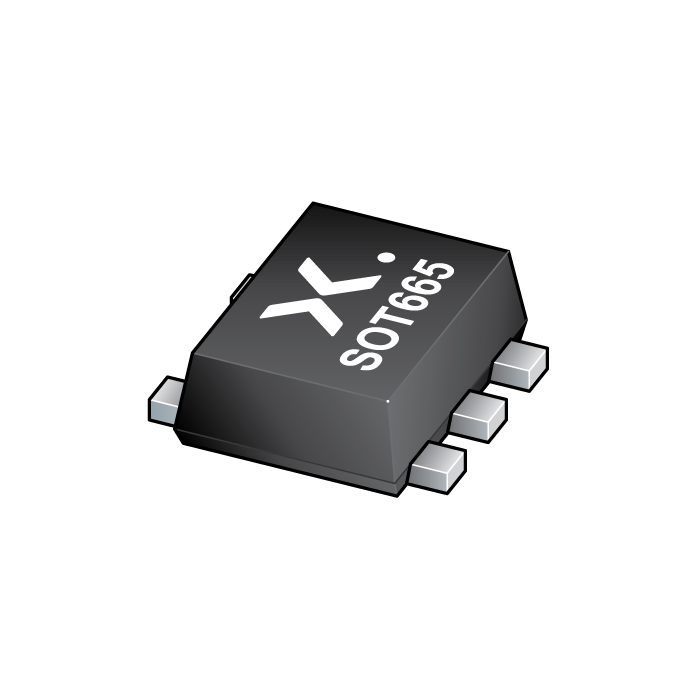

Low capacitance unidirectional quadruple ElectroStatic Discharge (ESD) protection diode array in an ultra small flat lead SOT665 Surface-Mounted Device (SMD) plastic package, designed to protect up to four signal lines from the damage caused by ESD and other transients.
- 数据手册:
库存: 0
特性
ESD protection of up to four lines
Low diode capacitance
Max. peak pulse power: PPP = 30 W
Low clamping voltage: VCL = 12 V
Ultra low leakage current: IRM = 75 nA
ESD protection up to 20 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPP = 3 A
目标应用
Computers and peripherals
Communication systems
Audio and video equipment
Portable electronics
Cellular handsets and accessories
Subscriber Identity Module (SIM) card protection
