PESD3V3L4BHC
图像仅供参考
请参阅产品规格
PESD3V3L4BHC
-
商品编号:
PESD3V3L4BHCYL
-
简述:
4-fold bidirectional ESD protection array
-
描述:
4-fold bidirectional ElectroStatic Discharge (ESD) protection array designed to protect up to four lines from the damage caused by ESD and other transients.

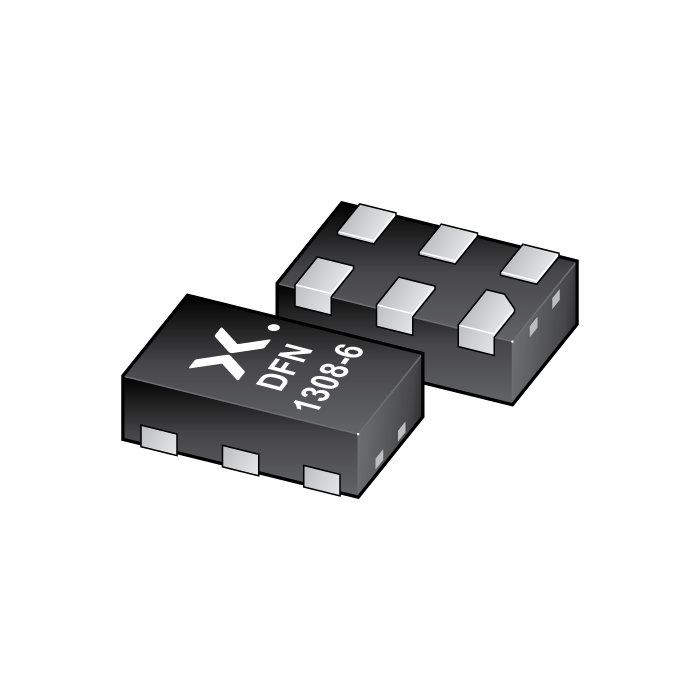

The device is housed in a leadless extremely thin small DFN1308-6 (SOT8006) Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 0
特性
Bidirectional ESD protection of up to 4 lines
Very high surge robustness; IPP = 6 A for 8/20 µs pulse
Very low clamping voltage: VCL = 7.3 V typ. for 6 A 8/20 µs pulse
ESD protection up to 20 kV
Very low dynamic resistance Rdyn = 0.2 Ω (TLP)
目标应用
ESD protection for low-speed lines in portable communication, consumer devices and computing devices.
数据手册
