PESD36VS1UL
图像仅供参考
请参阅产品规格
PESD36VS1UL
-
商品编号:
PESD36VS1UL,315
-
批次:
2350+
-
简述:
Unidirectional ESD protection diode
-
描述:

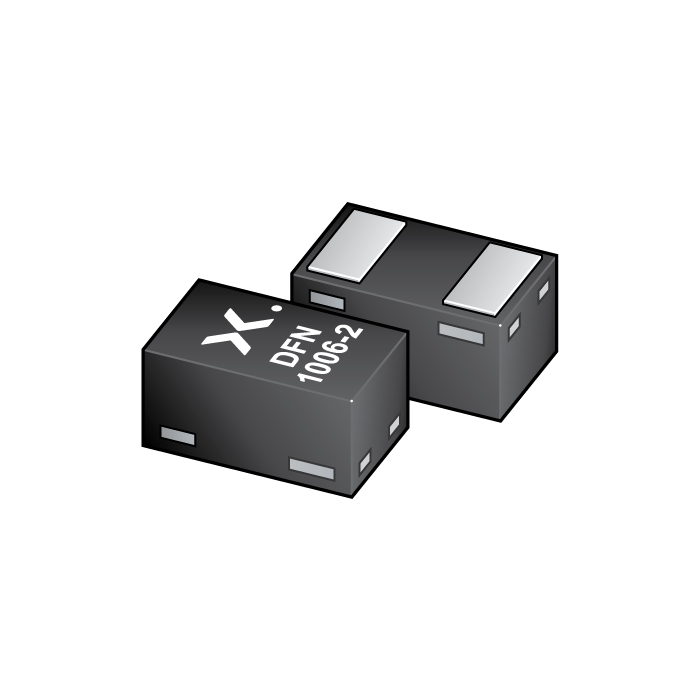

Unidirectional ElectroStatic Discharge (ESD) protection diode in a leadless ultra small SOD882 Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.
- 数据手册:
库存: 0
特性
ESD protection of one line
Ultra small SMD plastic package
AEC-Q101 qualified
ESD protection up to 30 kV
IEC 61000-4-5; (surge); IPPM = 2.5 A
Rated peak pulse power: PPPM = 150 W
Ultra low leakage current: IRM < 1 nA
目标应用
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
Portable electronics
Communication systems
数据手册
