PESD2V8Y1BSFYL
-
简述:
Extremely low clamping bidirectional ESD protection diode
-
描述:

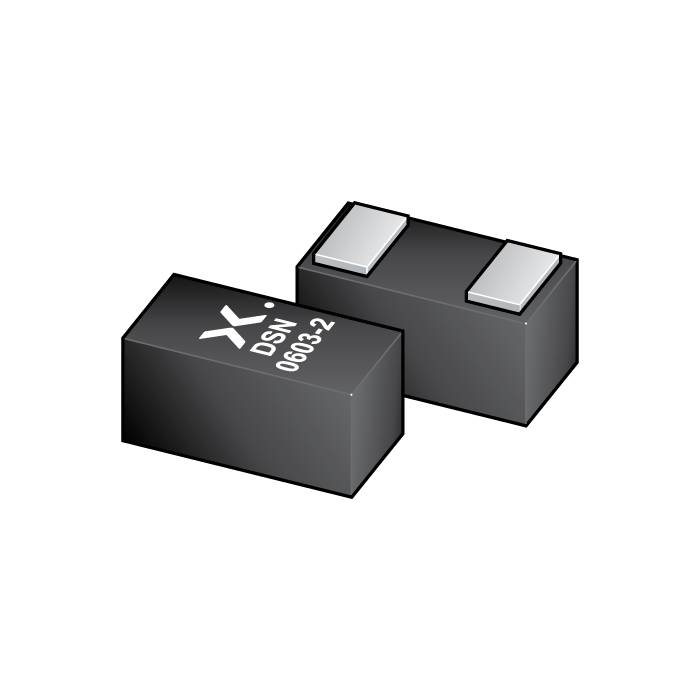

Extremely low clamping, extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS protection family. This device is housed in a DSN0603-2 (SOD962-2) leadless, ultra-small Surface-Mounted Device (SMD) package designed to protect one signal line from the damage caused by ESD and other transients.
- 数据手册:
特性
Bidirectional ESD protection of one line
ESD protection up to ±14 kV contact discharge according to IEC 61000-4-2
Backwards compatible to USB3.2 due to VRWM = 2.8 V
Extremely low diode capacitance: Cd = 0.16 pF at 1 MHz
- Extremely low clamping and trigger voltage (Vt1 = 6.9 V TLP) to protect sensitive transceivers
Extremely low insertion loss: -0.29 dB at 10 GHz
Extremely low return loss: -20.6 dB at 10 GHz
RF performance does not degrade over the operation voltage range
Extremely low leakage current: < 1 nA at 2.8 V
Extremely low inductance protection path to ground
Very high surge robustness: 5.5 A for a 8/20 µs pulse
IEC 61000-4-4 robust up to level 3 on I/O ports (corresponds to 40 A into a 50 Ohm termination)
Ultra-small SMD package
目标应用
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
USB4, USB3.2 and Thunderbolt 3 and 4 data lines
