PESD1LIN
图像仅供参考
请参阅产品规格
PESD1LIN
-
商品编号:
PESD1LIN,115
-
批次:
2408+
-
简述:
LIN-bus ESD protection diode
-
描述:

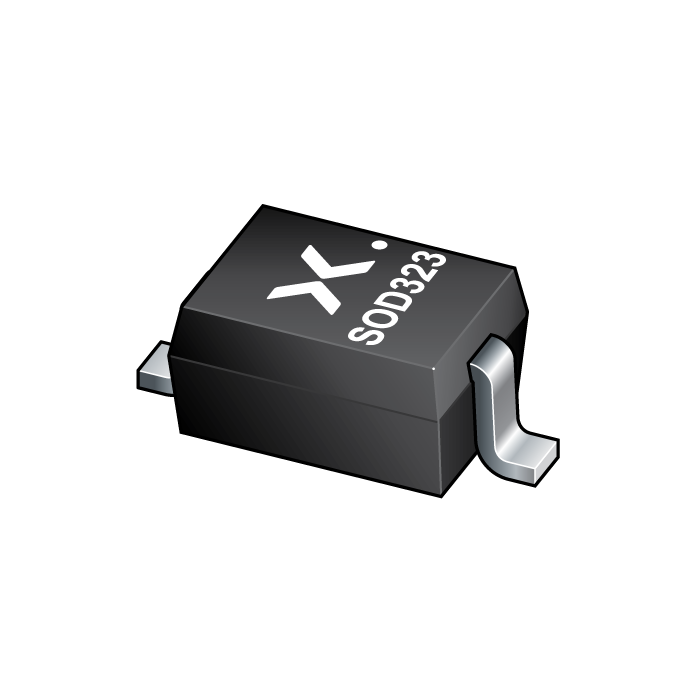

PESD1LIN in a very small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package designed to protect one automotive Local Interconnect Network (LIN) bus line from the damage caused by ElectroStatic Discharge (ESD) and other transients.
- 数据手册:
库存: 99999999
特性
ESD protection of one automotive LIN-bus line
Asymmetrical diode configuration ensures an optimized protection against ElectroMagnetic Interferences (EMI) of a LIN Electronic Control Unit (ECU)
Max. peak pulse power: PPP = 160W at tp = 8/20 μs
Low clamping voltage: VCL = 40 V at IPP = 1 A
Ultra low leakage current: IRM < 1 nA
ESD protection of up to 23 kV
IEC 61000-4-2, level 4 (ESD)
IEC 61000-4-5 (surge); IPP = 3 A at tp = 8/20 μs
AEC-Q101 qualified
目标应用
LIN-bus protection
Automotive applications
