PDTC143/114/124/144EQC series
图像仅供参考
请参阅产品规格
PDTC143/114/124/144EQC series
-
商品编号:
PDTC144EQCZ
-
简述:
50 V, 100 mA NPN resistor-equipped transistors
-
描述:

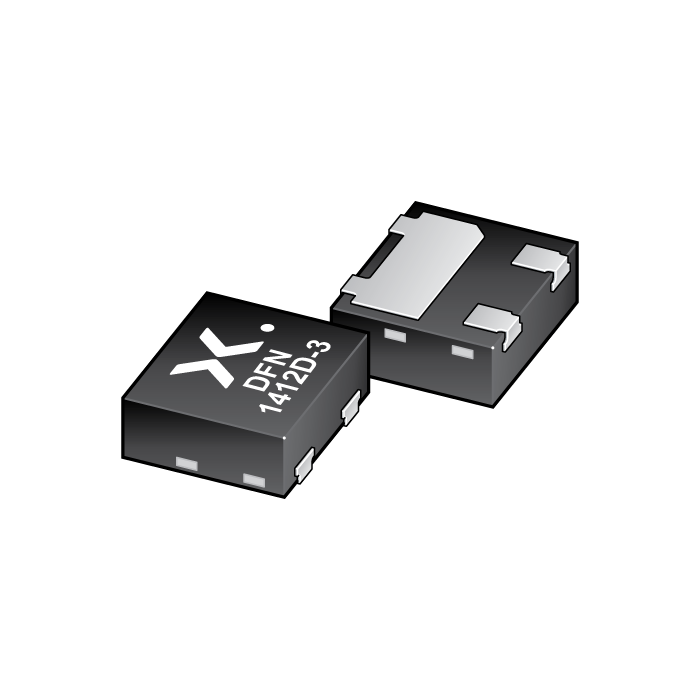

100 mA NPN Resistor-Equipped Transistor (RET) family in an ultra small DFN1412D-3 (SOT8009) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
Table 1. Product overview Type number
R1
R2
Package
PNP complement:
kΩ
kΩ
Nexperia
JEDEC
PDTC143EQC
4.7
4.7
SOT8009
MO-340CA
PDTA143EQC
PDTC114EQC
10
10
PDTA114EQC
PDTC124EQC
22
22
PDTA124EQC
PDTC144EQC
47
47
PDTA144EQC
- 数据手册:
库存: 99999999
特性
100 mA output current capability
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Low package height of 0.5 mm
Suitable for Automatic Optical Inspection (AOI) of solder joint
目标应用
Digital applications
Cost saving alternative for BC847 series in digital applications
Controlling IC inputs
Switching loads
