图像仅供参考
请参阅产品规格
-
商品编号:
PDTC143XQC-QZ
-
批次:
2350+
-
简述:
Q series - 50 V, 100 mA NPN resistor-equipped transistors
-
描述:

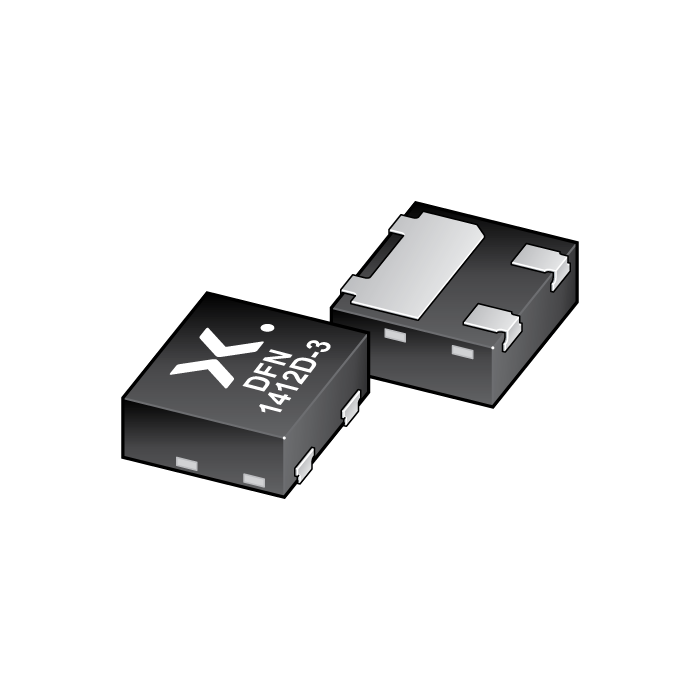

100 mA NPN Resistor-Equipped Transistor (RET) family in an ultra small DFN1412D-3 (SOT8009) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
Table 1. Product overview Type number
R1
R2
Package
PNP complement:
kΩ
kΩ
Nexperia
JEDEC
PDTC143XQC-Q
4.7
10
SOT8009
MO-340CA
PDTA143XQC-Q
PDTC123JQC-Q
2.2
47
PDTA123JQC-Q
PDTC143ZQC-Q
4.7
47
PDTA143ZQC-Q
PDTC114YQC-Q
10
47
PDTA114YQC-Q
PDTC124XQC-Q
22
47
PDTA124XQC-Q
- 数据手册:
特性
100 mA output current capability
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Low package height of 0.5 mm
Suitable for Automatic Optical Inspection (AOI) of solder joint
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
Digital applications
Cost saving alternative for BC847-Q series in digital applications
Controlling IC inputs
Switching loads
