PDTA143X/123J/134Z/114Y/124XQC series
图像仅供参考
请参阅产品规格
PDTA143X/123J/134Z/114Y/124XQC series
-
商品编号:
PDTA124XQCZ
-
简述:
50 V, 100 mA PNP resistor-equipped transistors
-
描述:

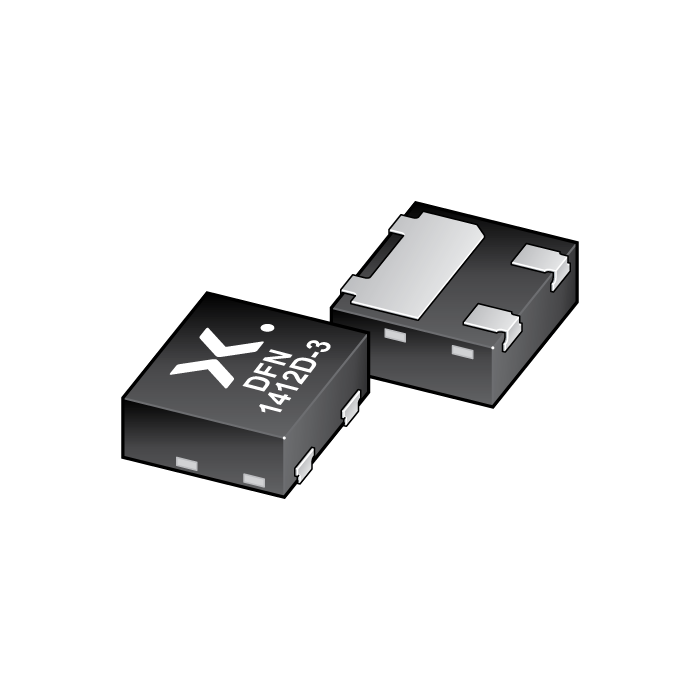

100 mA PNP Resistor-Equipped Transistor (RET) family in an ultra small DFN1412D-3 (SOT8009) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
Table 1. Product overview Type number
R1
R2
Package
NPN complement:
kΩ
kΩ
Nexperia
JEDEC
PDTA143XQC
4.7
10
SOT8009
MO-340CA
PDTC143XQC
PDTA123JQC
2.2
47
PDTC123JQC
PDTA143ZQC
4.7
47
PDTC143ZQC
PDTA114YQC
10
47
PDTC114YQC
PDTA124XQC
22
47
PDTC124XQC
- 数据手册:
库存: 99999999
特性
100 mA output current capability
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Low package height of 0.5 mm
Suitable for Automatic Optical Inspection (AOI) of solder joint
目标应用
Digital applications
Cost saving alternative for BC857 series in digital applications
Controlling IC inputs
Switching loads
