图像仅供参考
请参阅产品规格
-
商品编号:
PBSS4310PAS-QX
-
批次:
2350+
-
简述:
Q - 10 V, 3 A NPN low VCEsat transistor
-
描述:

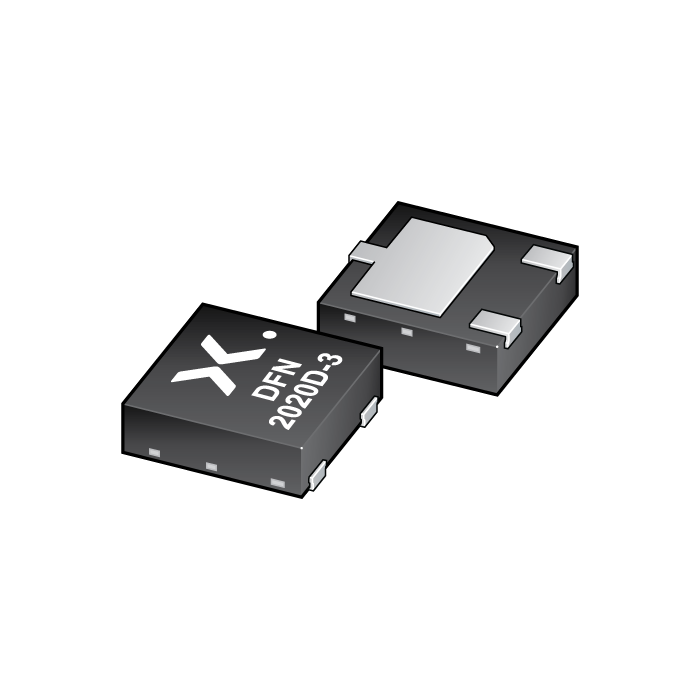

NPN low VCEsat transistor, encapsulated in an ultra thin SOT1061D (DFN2020D-3) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and side-wettable flanks (SWF).
- 数据手册:
特性
Very low collector-emitter saturation voltage VCEsat
High collector current capability IC and ICM
High collector current gain (hFE) at high IC
High efficiency due to less heat generation
High temperature applications up to 175 °C
Reduced Printed-Circuit Board (PCB) area requirements
Leadless small SMD plastic package with soldarable side pads
Exposed heat sink for excellent thermal and electrical conductivity
Suitable for Automatic Optical Inspection (AOI) of solder joint
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
Linear voltage regulation
Loadswitch
Battery-driven devices
Power management
Charging circuits
Power switches (e.g. motors, fans)
