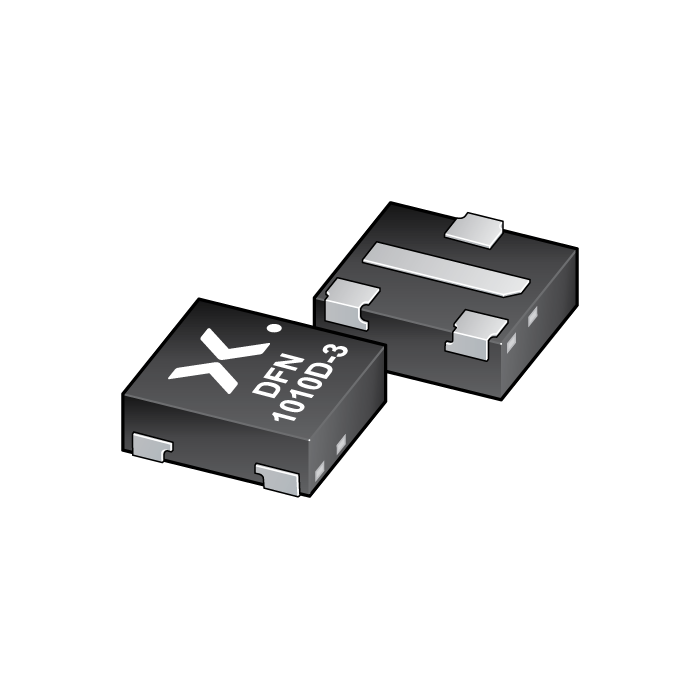

图像仅供参考
请参阅产品规格
-
商品编号:
NUP1301QA-QZ
-
简述:
Q - Ultra low capacitance ESD protection array
-
描述:
Ultra low capacitance ElectroStatic Discharge (ESD) protection array in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads, designed to protect one signal line in rail-to-rail configuration from the damage caused by ESD and other transients.
- 数据手册:
特性
ESD protection of one signal line (rail-to-rail configuration)
Ultra low diode capacitance: Cd = 2.3 pF
Very low reverse leakage current: ≤ 30 nA
ESD protection up to 30 kV
ESD robustness exceeds IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPPM = 11 A at tp = 8/20 μs
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
Telecommunication networks
Video line protection
Microcontroller protection
I2C-bus protection
Antenna power supply
Analog audio
Class-D amplifier
