NHDTC114/124/144EU series
图像仅供参考
请参阅产品规格
NHDTC114/124/144EU series
-
商品编号:
NHDTC124EUF
-
简述:
80 V, 100 mA NPN resistor-equipped transistors
-
描述:

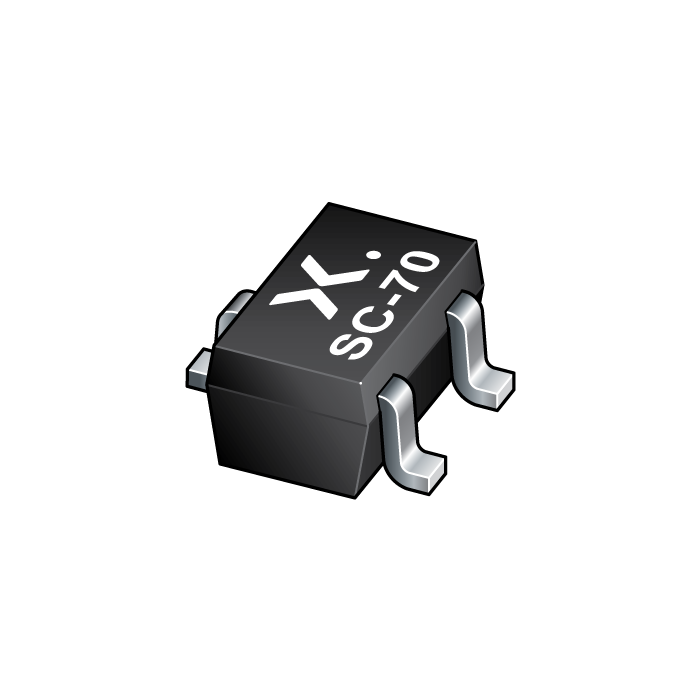

NPN Resistor-Equipped Transistor (RET) family in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview Type number
R1
R2
Package
PNP complement:
kΩ
kΩ
Nexperia
JEITA
NHDTC114EU
10
10
SOT323
SC-70
NHDTA114EU
NHDTC124EU
22
22
NHDTA124EU
NHDTC144EU
47
47
NHDTA144EU
- 数据手册:
库存: 0
特性
100 mA output current capability
High breakdown voltage
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
AEC-Q101 qualified
目标应用
Digital applications
Cost saving alternative for BC846 series in digital applications
Controlling IC inputs
Switching loads
