NHDTC123JU/143ZU/114YU series

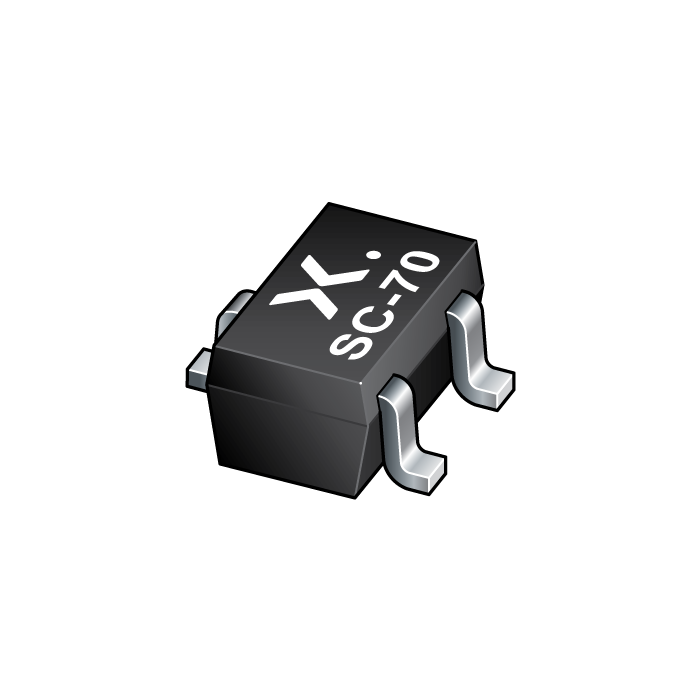

图像仅供参考
请参阅产品规格
NHDTC123JU/143ZU/114YU series
-
商品编号:
NHDTC123JUF
-
简述:
80 V, 100 mA NPN resistor-equipped transistors
-
描述:
NPN Resistor-Equipped Transistor (RET) family in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview Type number
R1
R2
Package
PNP complement:
kΩ
kΩ
Nexperia
JEITA
NHDTC123JU
2.2
47
SOT323
SC-70
NHDTA123JU
NHDTC143ZU
4.7
47
NHDTA143ZU
NHDTC114YU
10
47
NHDTA114YU
- 数据手册:
库存: 0
特性
- 100 mA output current capability
- High breakdown voltage
- Built-in resistors
- Simplifies circuit design
- Reduces component count
- Reduces pick and place costs
- AEC-Q101 qualified
目标应用
- Digital applications
- Cost saving alternative for BC846 series in digital applications
- Controlling IC inputs
- Switching loads
