NHDTA123JU/143ZU/114YU series
图像仅供参考
请参阅产品规格
NHDTA123JU/143ZU/114YU series
-
商品编号:
NHDTA123JUF
-
简述:
80 V, 100 mA PNP resistor-equipped transistors
-
描述:

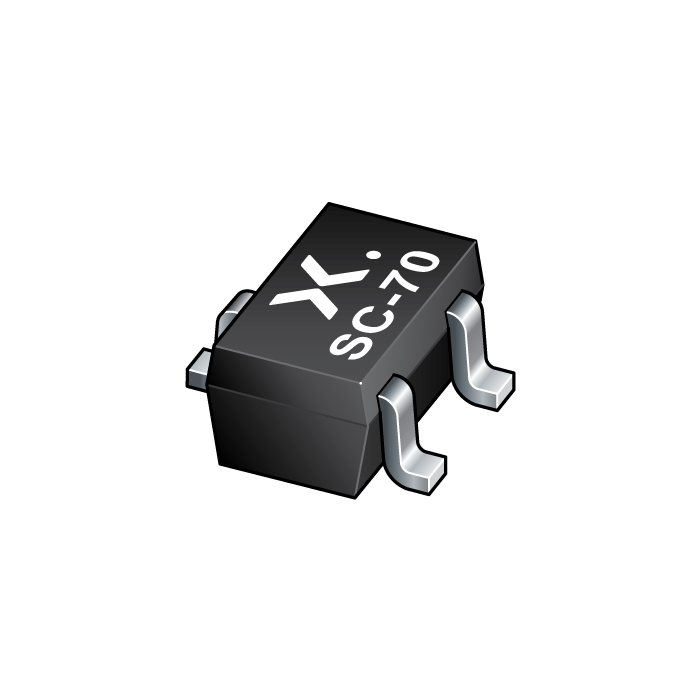

PNP Resistor-Equipped Transistor (RET) family in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview Type number
R1
R2
Package
NPN complement:
kΩ
kΩ
Nexperia
JEITA
NHDTA123JU
2.2
47
SOT323
SC-70
NHDTC123JU
NHDTA143ZU
4.7
47
NHDTC143ZU
NHDTA114YU
10
47
NHDTC114YU
- 数据手册:
库存: 0
特性
100 mA output current capability
High breakdown voltage
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
AEC-Q101 qualified
目标应用
Digital applications
Cost saving alternative for BC856 series in digital applications
Controlling IC inputs
Switching loads
