NEX10000
图像仅供参考
请参阅产品规格
NEX10000
-
商品编号:
NEX10000UBZ
-
批次:
2422+
-
简述:
80 mA dual output LCD bias power supply
-
描述:
The NEX10000 is a power supply IC providing programmable positive and negative output voltages for TFT-LCD panels. The device features an integrated boost converter, LDO regulator and a negative charge pump. The device requires only a single inductor allowing for a small Bill-Of-Material and the smallest PCB area.
The NEX10000 has an input voltage range of 2.7 V to 5 V and can operate from single-cell Li-ion, Ni-Li and Li-Polymer batteries It can supply up to 80 mA output current. The NEX10000 has excellent line transient and load transient responses.
- 数据手册:
库存: 3000
特性
- Input voltage range: 2.7 V to 5 V
- Programmable output voltages:
- OUTP: +4 V to +6 V (0.1 V step)
- OUTN: -4 V to -6 V (0.1 V step)
- Maximum output current: 80 mA
- 86% high efficiency at 40 mA combined output
- ±1% output voltage accuracy
- Excellent transient response
- I²C Interface:
- Flexible output voltage programming
- Integrated active output discharge function
- UVLO and OTSD protection

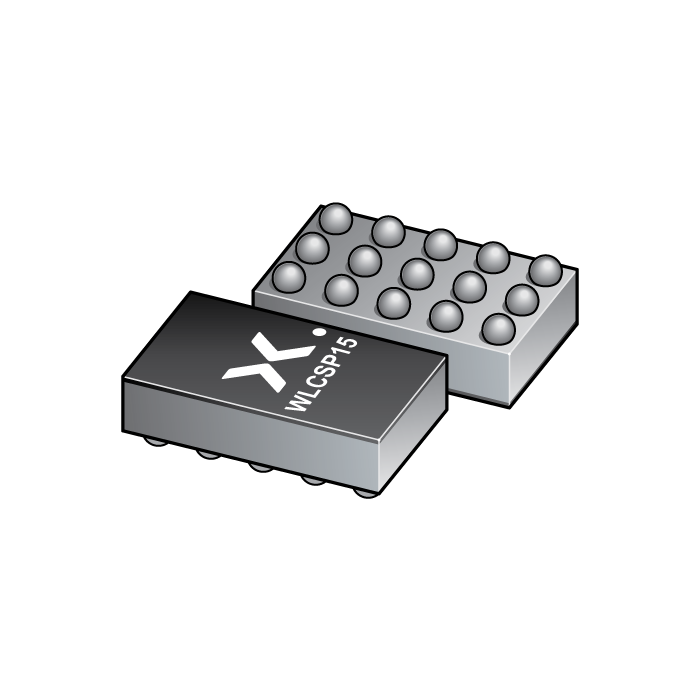

- Wafer level chip-scale package; 15 bumps; 1.16 × 1.96 × 0.62 mm body (0.4 mm pitch)
- ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
CDM: ANSI/ESDA/JEDEC JS-002 class C2a exceeds 500 V
Specified from -40 °C to +85 °C
目标应用
Smart phone TFT-LCD
Tablet TFT-LCD
 |
|
数据手册
