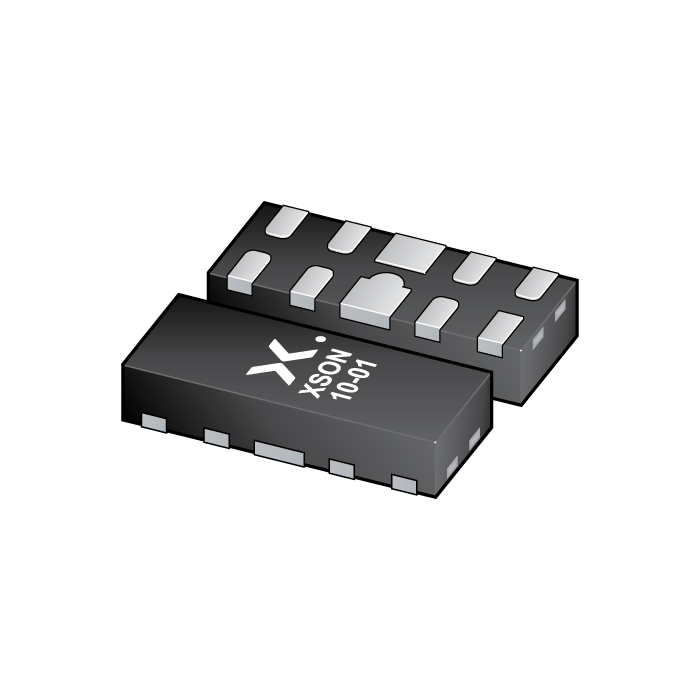

IP4283CZ10-TBA,115
-
简述:
TBA - ESD protection for ultra high-speed interfaces
-
描述:
The devices are designed to protect high-speed interfaces such as High-Definition Multimedia Interface (HDMI), DisplayPort, external Serial Advanced Technology Attachment (eSATA) and Low-Voltage Differential Signaling (LVDS) interfaces against ElectroStatic Discharge (ESD).
The devices include four high-level ESD protection diode structures for ultra high-speed signal lines.
All signal lines are protected by a special diode configuration offering ultra low line capacitance of only 0.6 pF. These diodes provide protection to downstream components from ESD voltages up to ±8 kV contact according to IEC 61000-4-2, level 4.
- 数据手册:
特性
System ESD protection for HDMI, DisplayPort, eSATA and LVDS
All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of ±8 kV according to IEC 61000-4-2, level 4
Matched 0.5 mm trace spacing
Signal lines with ≤ 0.05 pF matching capacitance between signal pairs
Line capacitance of only 0.6 pF for each channel
Design-friendly ‘pass-thru’ signal routing
目标应用
The devices are designed for high-speed receiver and transmitter port protection:
TVs, monitors
DVD recorders and players
Notebooks, main board graphics cards and ports
Set-top boxes and game consoles
