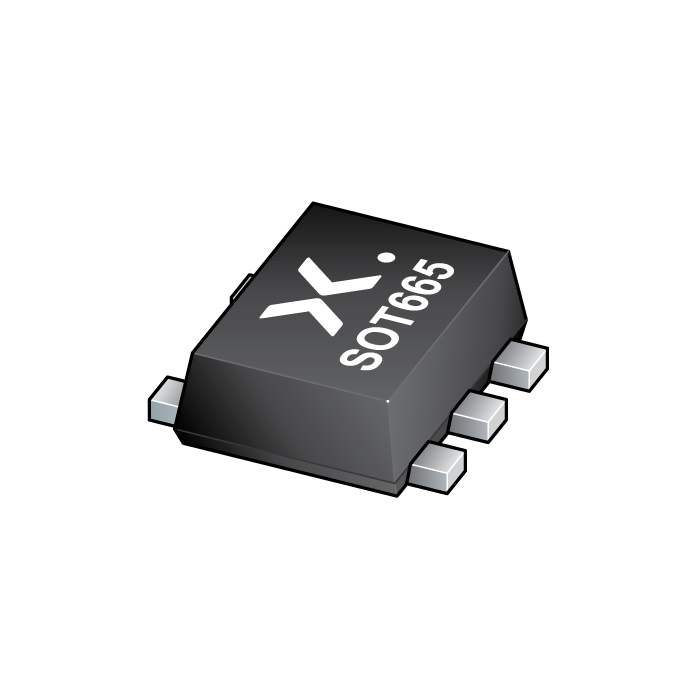

图像仅供参考
请参阅产品规格
-
商品编号:
IP4256CZ5-W,115
-
简述:
W - Dual-channel passive filter network with ESD protection
-
描述:
The IP4256CZ5-W is a dual-channel RC low-pass filter which provides high-level ElectroStatic Discharge (ESD) protection.
The device is designed to protect a range of portable communication transmitter applications against unwanted RF signals. Incorporated diodes provide protection to downstream components from ESD voltages up to ±25 kV contact discharge, far exceeding IEC 61000-4-2 level 4.
The device is manufactured using monolithic silicon technology.
- 数据手册:
特性
100 Ohm series channel resistance and 30 pF channel capacitance at 0 V bias voltage (DC)
ESD protection up to ±25 kV contact discharge, far exceeding IEC 61000-4-2 level 4
Dual-channel integrated π-type RC filter network
目标应用
General-purpose ElectroMagnetic Interference (EMI), Radio Frequency Interference (RFI) filtering and downstream ESD protection for:
Cellular phone and Personal Communication System (PCS) mobile handset
Cordless telephone
Wireless data (WAN/LAN) system
