HEF4081B

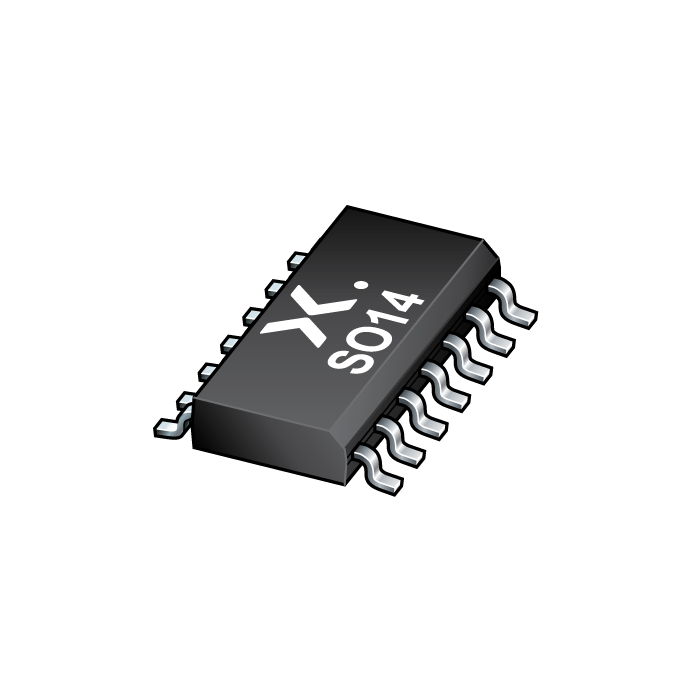

图像仅供参考
请参阅产品规格
HEF4081B
-
商品编号:
HEF4081BT,653
-
批次:
2324+
-
简述:
Quad 2-input AND gate
-
描述:
The HEF4081B is a quad 2-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
- 数据手册:
库存: 2500
特性
Fully static operation
Wide supply voltage range from 3.0 V to 15.0 V
CMOS low power dissipation
High noise immunity
5 V, 10 V, and 15 V parametric ratings
Standardized symmetrical output characteristics
Complies with JEDEC standard JESD 13-B
- ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-B exceeds 200 V
Specified from -40 °C to +85 °C and -40 °C to +125 °C
