HEF4073B

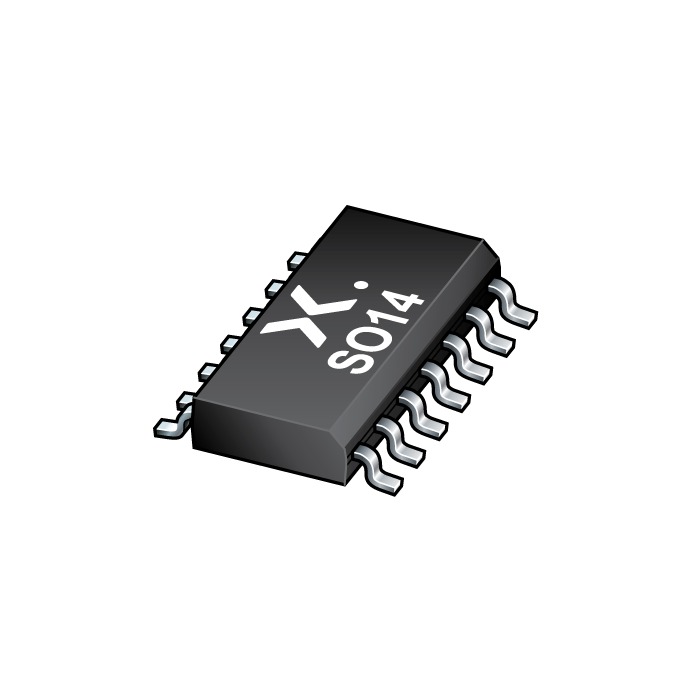

图像仅供参考
请参阅产品规格
HEF4073B
-
商品编号:
HEF4073BT,653
-
简述:
Triple 3-input AND gate
-
描述:
The HEF4073B is a triple 3-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- 数据手册:
库存: 0
特性
Wide supply voltage range from 3.0 to 15.0 V
CMOS low power dissipation
High noise immunity
Complies with JEDEC standard JESD 13-B
ESD protection:
HBM ANSI/ESDA/JEDEC JS-001 exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
Specified from -40 °C to +85 °C
