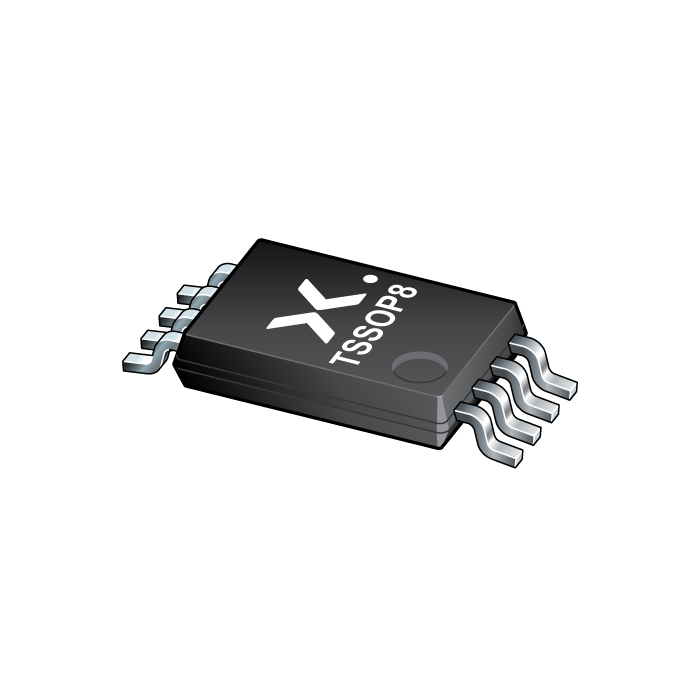

CBTD3306
图像仅供参考
请参阅产品规格
CBTD3306
-
商品编号:
CBTD3306PW,118
-
简述:
Dual bus switch with level shifting
-
描述:
The CBTD3306 dual FET bus switch features independent line switches. Each switch is disabled when the associated output enable (nOE) input is HIGH.
The CBTD3306 is characterized for operation from -40 °C to +85 °C.
- 数据手册:
库存: 0
特性
Designed to be used in 5 V to 3.3 V level shifting applications with internal diode
5 Ω switch connection between two ports
TTL-compatible input levels
Multiple package options
IOFF circuitry provides partial Power-down mode operation
Latch-up protection exceeds 100 mA per JESD78B
ESD protection:
HBM JESD22-A114F exceeds 2000 V
CDM JESD22-C101E exceeds 1000 V
