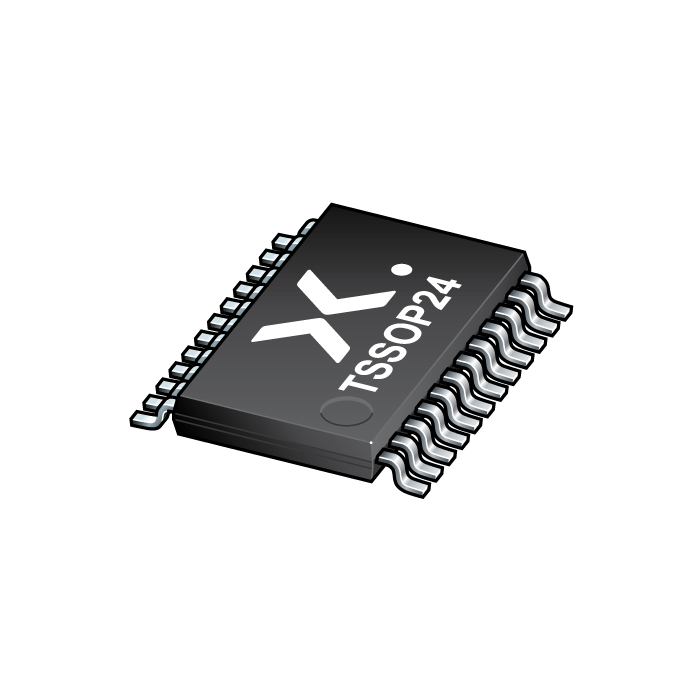

CBT3384
图像仅供参考
请参阅产品规格
CBT3384
-
商品编号:
CBT3384PW,118
-
简述:
10-bit bus switch with 5-bit output enables
-
描述:
The CBT3384 is a dual 5-pole, single-throw bus switch. The device features two output enable inputs (nOE) that each control five switch channels. The switches are disabled when the associated nOE input is HIGH. This device is fully specified for partial power down applications using IOFF.
- 数据手册:
库存: 0
特性
5 Ω switch connection between two ports
Direct interface with TTL levels
Overvoltage tolerant control inputs to 5.5 V
IOFF circuitry provides partial Power-down mode operation
Latch-up protection exceeds 100 mA per JESD78
ESD protection:
HBM JESD22-A114E exceeds 2000 V
CDM JESD22-C101C exceeds 1000 V
Specified from -40 °C to +85 °C
