CBT3306

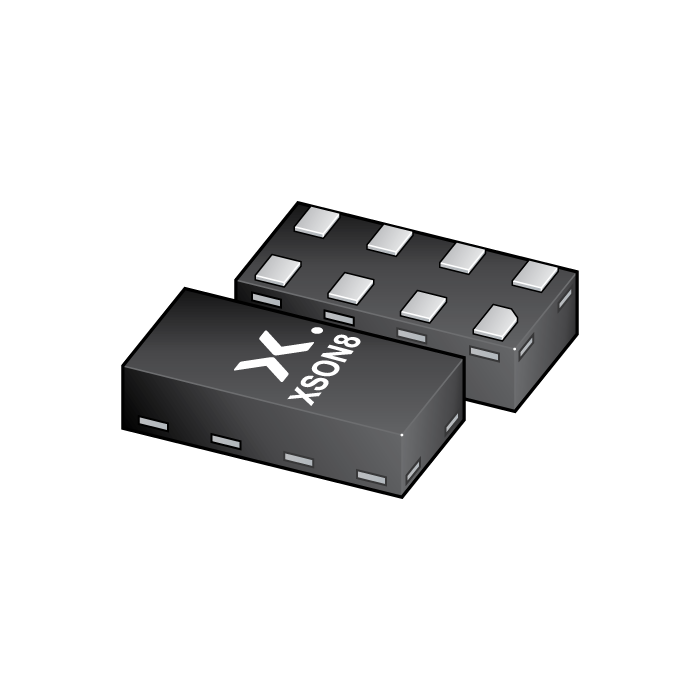

图像仅供参考
请参阅产品规格
CBT3306
-
商品编号:
CBT3306GT,115
-
简述:
Dual bus switch
-
描述:
The CBT3306 dual FET bus switch features independent line switches. Each switch is disabled when the associated output enable (nOE) input is HIGH.
- 数据手册:
库存: 0
特性
5 Ω switch connection between two ports
Direct interface with TTL levels
Overvoltage tolerant control inputs to 5.5 V
IOFF circuitry provides partial Power-down mode operation
Latch-up protection exceeds 100 mA per JESD78B
ESD protection:
HBM JESD22-A114F exceeds 2000 V
CDM JESD22-C101D exceeds 1000 V
Specified from -40 °C to +85 °C
目标应用
数据手册
