BZX8850S
图像仅供参考
请参阅产品规格
BZX8850S
-
商品编号:
BZX8850S-C2V0-QYL
-
批次:
2338+
-
简述:
Q series - Low-current voltage regulator diodes
-
描述:

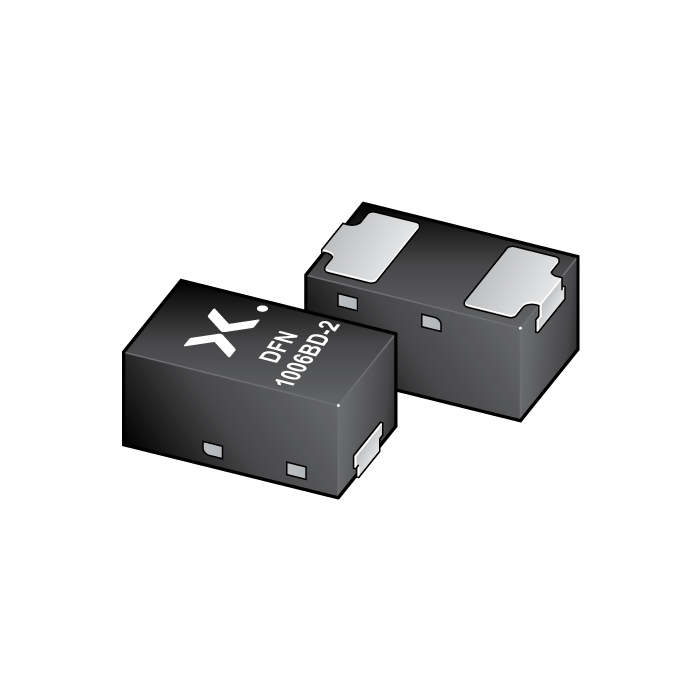

Low-current voltage regulator diodes in an ultra small SOD882BD (DFN1006BD-2) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
- 数据手册:
库存: 0
特性
Total power dissipation: ≤ 365 mW
Tolerance series: approximately ± 5 %
Working voltage range: nominal 1.8 V to 10 V
Specified at a low test current (50 μA), ideal for low bias and portable battery-powered applications
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
Low-current general regulation functions
数据手册
