BZV55 series
图像仅供参考
请参阅产品规格
BZV55 series
-
商品编号:
BZV55-B3V3,115
-
简述:
Voltage regulator diodes
-
描述:

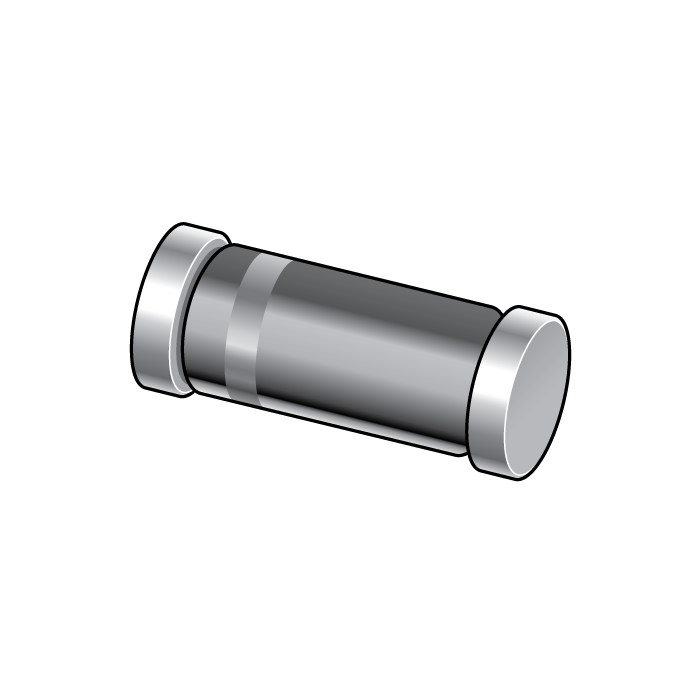

Low-power voltage regulator diodes in small hermetically sealed glass SOD80C Surface-Mounted Device (SMD) packages. The diodes are available in the normalized E24 ±2 % (BZV55-B) and approximately ±5 % (BZV55-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
- 数据手册:
库存: 99997499
特性
Non-repetitive peak reverse power dissipation: ≤ 40 W
Total power dissipation: ≤ 500 mW
Two tolerance series: ±2 % and ±5 %
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Low differential resistance
Small hermetically sealed glass SMD package
目标应用
General regulation functions
数据手册
