BC53xPAS
图像仅供参考
请参阅产品规格
BC53xPAS
-
商品编号:
BC53-10PAS-QX
-
批次:
2347+
-
简述:
Q series - 80 V, 1 A PNP medium power transistors
-
描述:

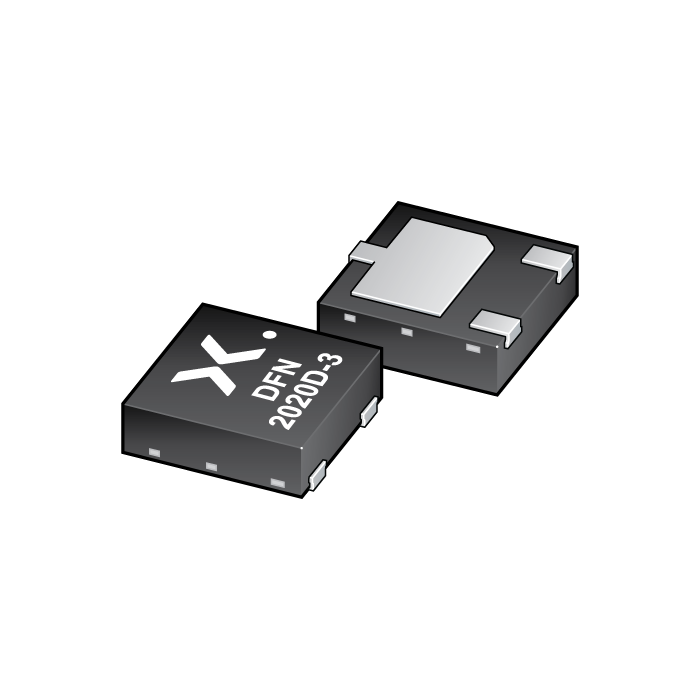

PNP medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads.
- 数据手册:
库存: 0
特性
High collector current capability IC and ICM
Reduced Printed-Circuit Board (PCB) area requirements
Exposed heat sink for excellent thermal and electrical conductivity
Two current gain selections
Leadless very small SMD plastic package with medium power capability
Suitable for Automatic Optical Inspection (AOI) of solder joint
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
Linear voltage regulators
Battery driven devices
MOSFET drivers
High-side switches
Power management
Amplifiers
