BAW56SRA

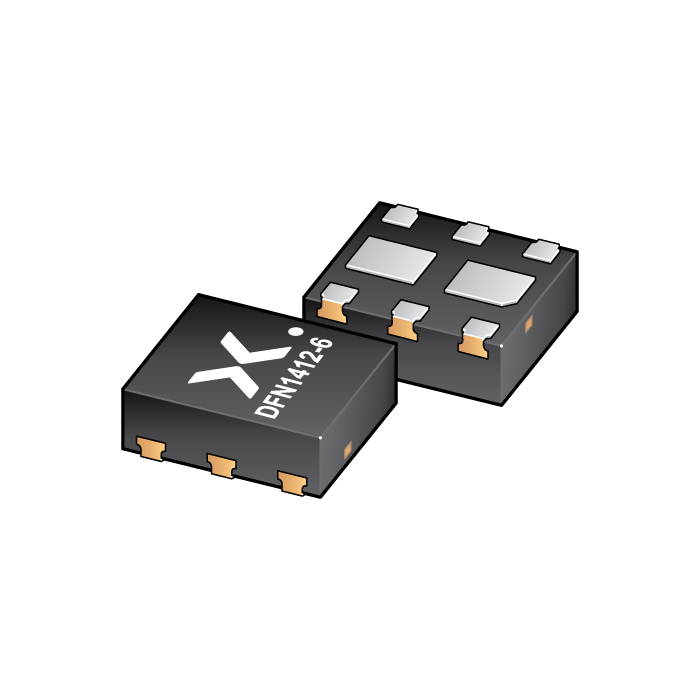

main product photo

图像仅供参考

请参阅产品规格

BAW56SRA

商品编号:
BAW56SRAZ
简述:
Quad high-speed switching diodes
描述:
Quad high-speed switching diodes with common anode configurations encapsulated in a leadless ultra small DFN1412-6 (SOT1268) Surface-Mounted Device (SMD) plastic package.
数据手册:
下载数据手册

跳转到图像库的开头

库存: 0

数量:

单价: ¥0.308

总价: ¥0.308

价格（包含13%的增值税）

数量单价总价: 1 ¥0.308 ¥0.308; 500 ¥0.28 ¥140.0000; 1000 ¥0.2667 ¥266.7000; 3000 ¥0.254 ¥762.0000

特性

High switching speed: t_rr ≤ 4 ns
Low leakage current
Reverse voltage V_R ≤ 90 V
Low capacitance C_d ≤ 2 pF
Ultra small SMD plastic package
AEC-Q101 qualified

目标应用

High-speed switching
General-purpose switching
