BAV70SRA
图像仅供参考
请参阅产品规格
BAV70SRA
-
商品编号:
BAV70SRAZ
-
批次:
2348+
-
简述:
Quad high-speed switching diodes
-
描述:

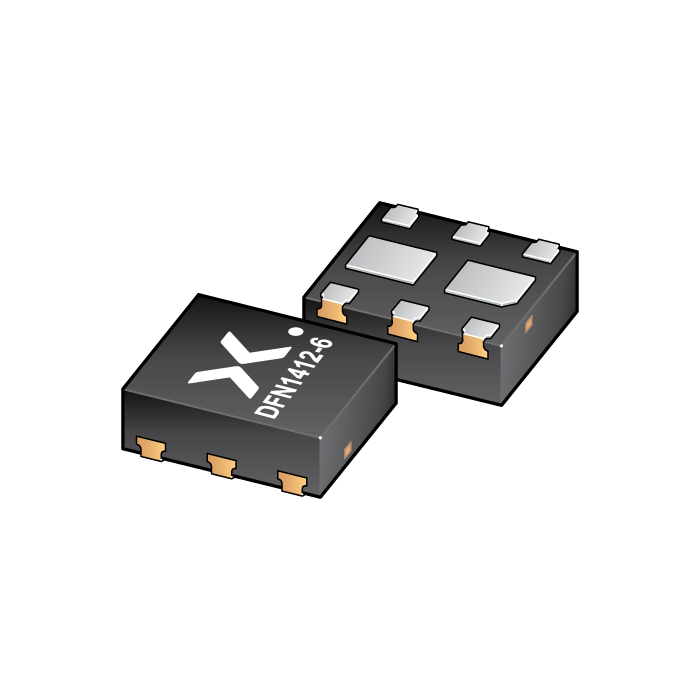

Quad high-speed switching diodes with common cathode configurations encapsulated in a leadless ultra small DFN1412-6 (SOT1268) Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 0
特性
High switching speed: trr ≤ 4 ns
Low leakage current: IR ≤ 0.5 µA
Reverse voltage VR ≤ 100 V
Low capacitance Cd ≤ 1.5 pF
Ultra small SMD plastic package
AEC-Q101 qualified
目标应用
High-speed switching
General-purpose switching
数据手册
