BAV20
图像仅供参考
请参阅产品规格
BAV20
-
商品编号:
BAV21,143
-
简述:
General purpose diodes
-
描述:
The BAV20 and BAV21 are switching diodes fabricated in planar technology, and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages.
- 数据手册:
库存: 0
特性

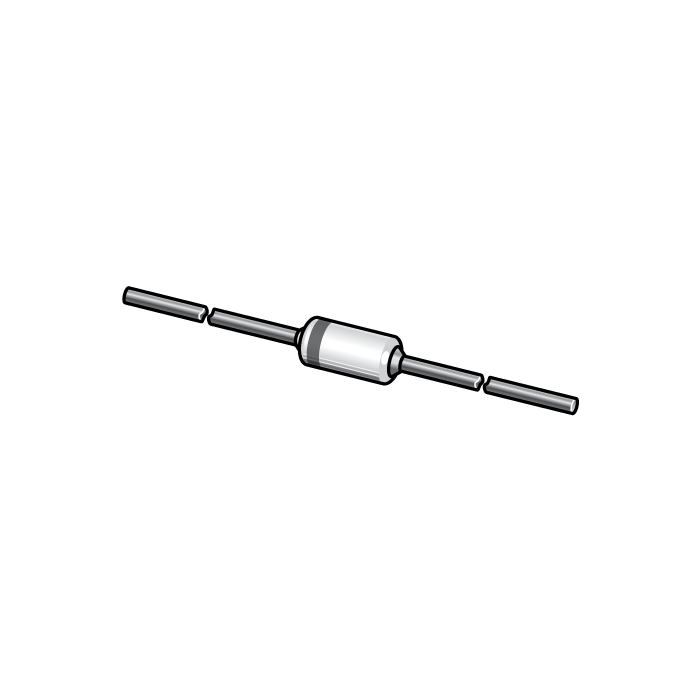

Hermetically sealed leaded glass SOD27 (DO-35) package
Switching speed: max. 50 ns
General application
Continuous reverse voltage: max. 150 V, 200 V
Repetitive peak reverse voltage: max. 200 V, 250 V
Repetitive peak forward current: max. 625 mA.
目标应用
General purposes in industrial equipment e.g. oscilloscopes, digital voltmeters and video output stages in colour television.
数据手册
