BAT54H

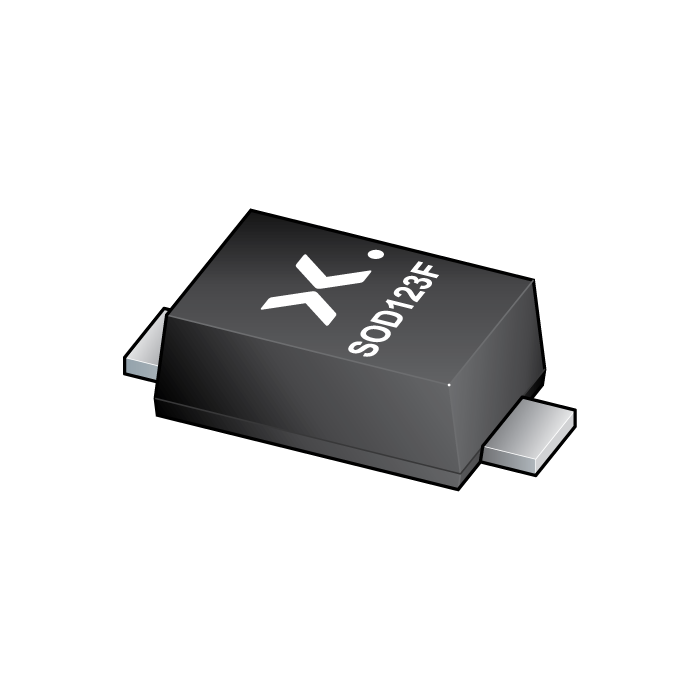

main product photo

图像仅供参考

请参阅产品规格

BAT54H
  • 商品编号:
    BAT54H-QX
  • 简述:
    Q - Schottky barrier single diode in small SOD123F package
  • 描述:

    Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.

  • 数据手册:
    下载数据手册
库存: 99702999
数量:
单价: ¥0.1138
总价: ¥0.1138
价格（包含13%的增值税）
数量 单价 总价
1 ¥0.1138 ¥0.1138
500 ¥0.1034 ¥51.7000
1000 ¥0.0985 ¥98.5000
3000 ¥0.0938 ¥281.4000

特性

  • Low forward voltage

  • Low capacitance

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

目标应用

  • Ultra high-speed switching

  • Voltage clamping

  • Line termination

  • Inverse-polarity protection

数据手册
下载数据手册
