BAT54H

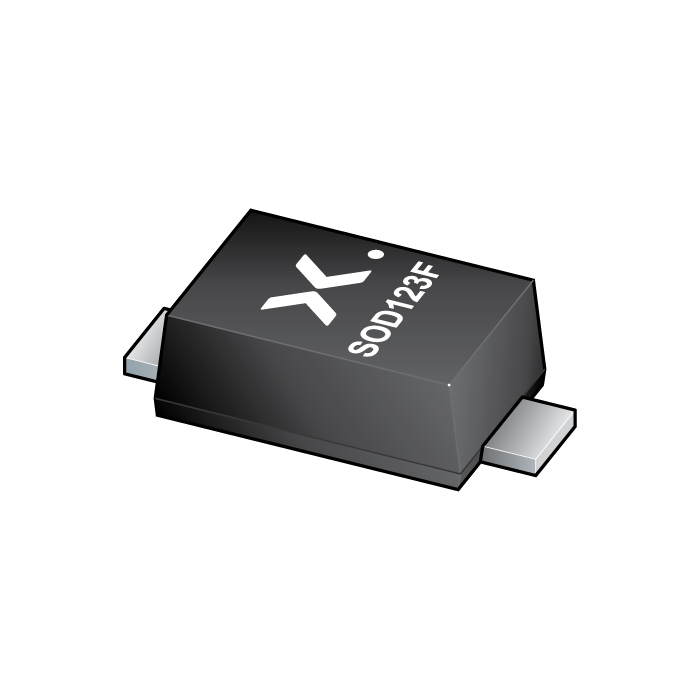

main product photo

图像仅供参考

请参阅产品规格

BAT54H
  • 商品编号:
    BAT54H,115
  • 简述:
    Schottky barrier single diode in small SOD123F package
  • 描述:

    Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.

  • 数据手册:
    下载数据手册
库存: 0
数量:
单价: ¥0.0958
总价: ¥0.0958

特性

  • Low forward voltage

  • Low capacitance

目标应用

  • Ultra high-speed switching

  • Voltage clamping

  • Line termination

  • Inverse-polarity protection

数据手册
下载数据手册
