BAS56
图像仅供参考
请参阅产品规格
BAS56
-
商品编号:
BAS56,235
-
简述:
High-speed double diode
-
描述:

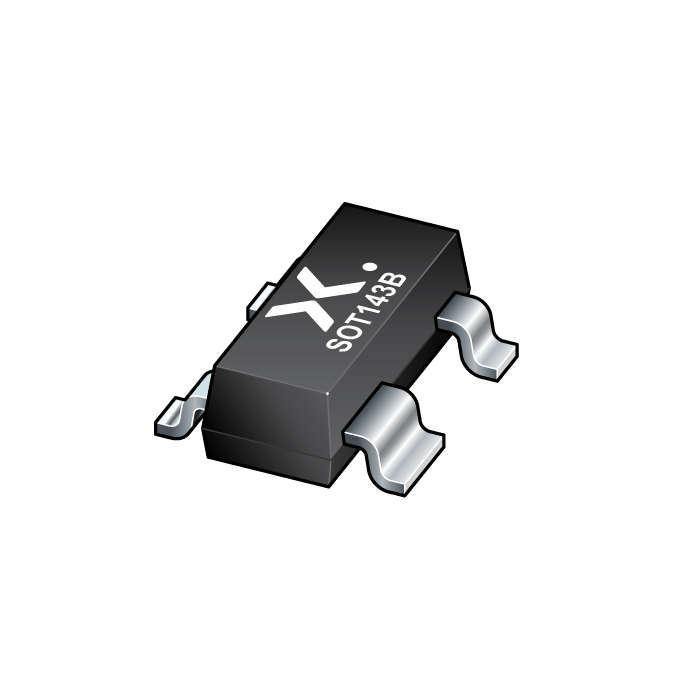

The BAS56 consists of two high-speed switching diodes fabricated in planar technology, and encapsulated in the small rectangular plastic SMD SOT143 package. The diodes are not connected.
- 数据手册:
库存: 99999999
特性
Small plastic SMD package
High switching speed: max. 6 ns
Continuous reverse voltage: max. 60 V
Repetitive peak reverse voltage: max. 60 V
Repetitive peak forward current: max. 600 mA.
AEC-Q101 qualified
目标应用
High speed switching in e.g. surface mounted circuits.
