BAS28,215
图像仅供参考
请参阅产品规格
BAS28,215
-
商品编号:
BAS28,215
-
批次:
2333+
-
简述:
High-speed double diode
-
描述:

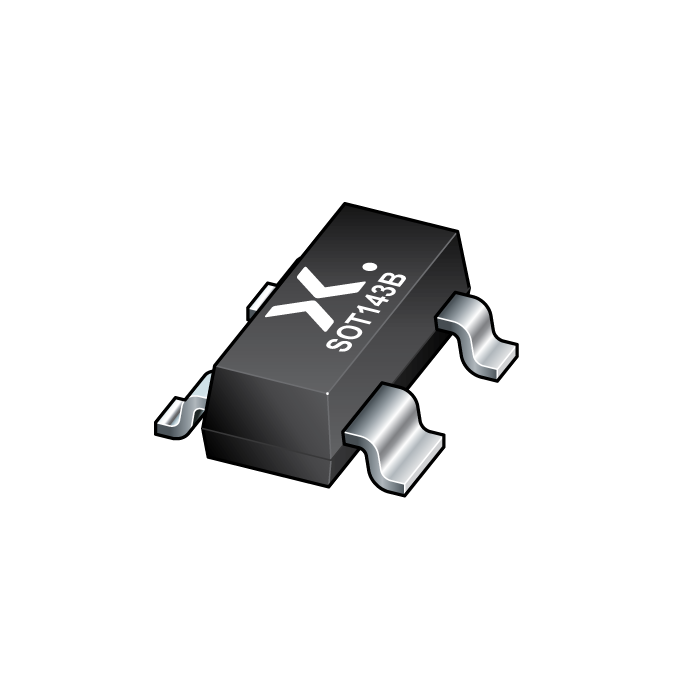

The BAS28 consists of two high-speed switching diodes, fabricated in planar technology, and encapsulated in the small plastic SMD SOT143 package. The diodes are not connected.
- 数据手册:
库存: 0
特性
Small plastic SMD package
High switching speed: max. 4 ns
Continuous reverse voltage: max. 75 V
Repetitive peak reverse voltage: max. 85 V
Repetitive peak forward current: max. 500 mA .
AEC-Q101 qualified
目标应用
High-speed switching in e.g. surface mounted circuits.
