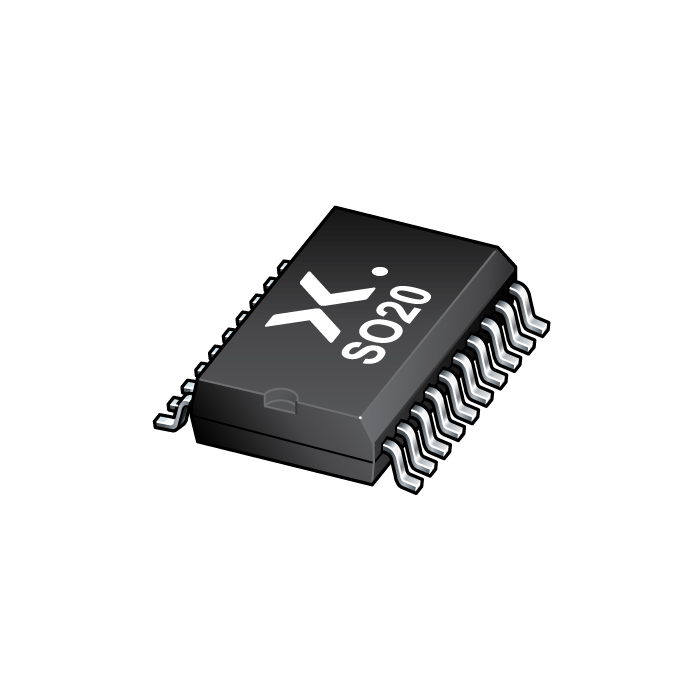

74VHC(T)244
图像仅供参考
请参阅产品规格
74VHC(T)244
-
商品编号:
74VHC244D,118
-
简述:
Octal buffer_line driver; 3-state
-
描述:
The 74VHC244; 74VHCT244 are a high-speed Si-gate CMOS devices.
The 74VHC244; 74VHCT244 have octal non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs are controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high-impedance OFF-state.
- 数据手册:
库存: 0
特性
Balanced propagation delays
All inputs have a Schmitt-trigger action
Inputs accepts voltages higher than VCC
Input levels:
The 74VHC244 operates with CMOS input level
The 74VHCT244 operates with TTL input level
ESD protection:
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101C exceeds 1000 V
Multiple package options
Specified from -40°C to +85°C and from -40°C to +125°C
