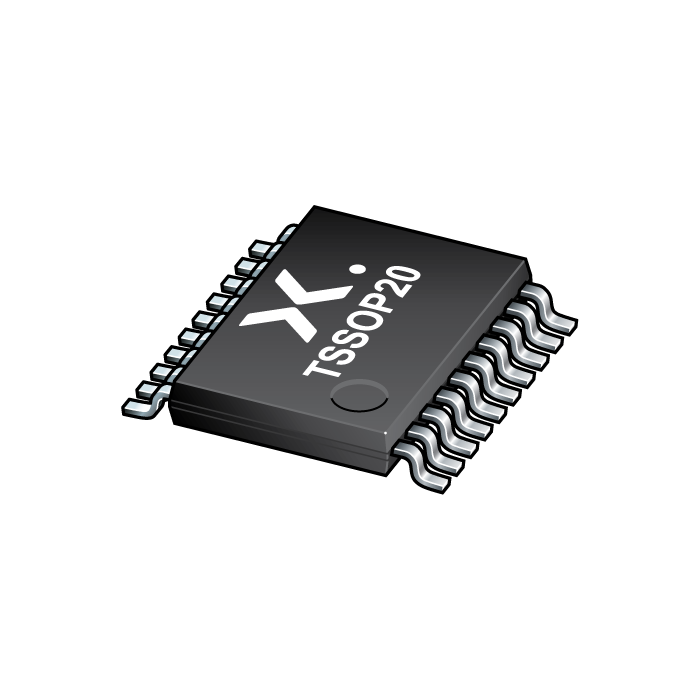

74HC688
图像仅供参考
请参阅产品规格
74HC688
-
商品编号:
74HC688PW,118
-
简述:
8-bit magnitude comparator
-
描述:
The 74HC688 is an 8-bit magnitude comparator. It performs comparisons of two 8-bit binary or BCD words. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- 数据手册:
库存: 9999999999
特性
Compare two 8-bit words
Wide supply voltage range from 2.0 to 6.0 V
CMOS input levels
Complies with JEDEC standard: no. 7A
ESD protection:
HBM JESD22-A114-F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
Multiple package options
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
