74HC(T)3G34

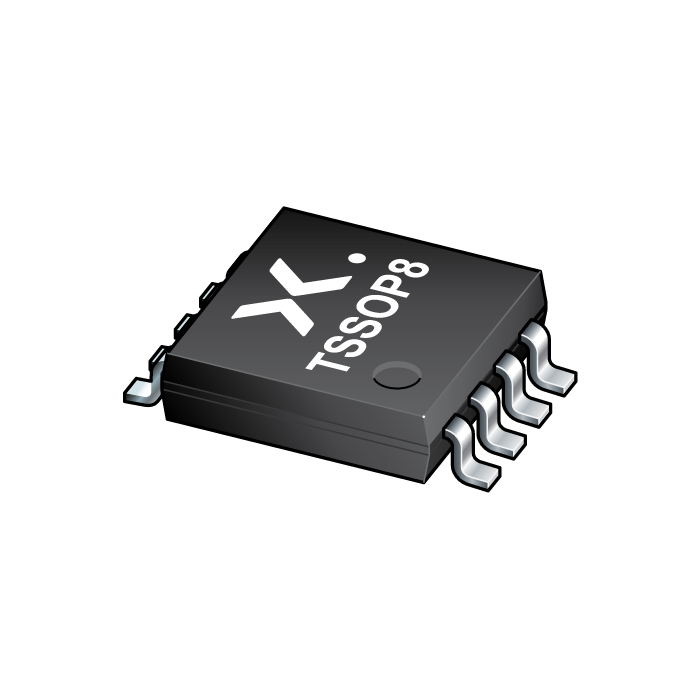

图像仅供参考
请参阅产品规格
74HC(T)3G34
-
商品编号:
74HC3G34DP,125
-
简述:
Triple buffer gate
-
描述:
The 74HC3G34; 74HCT3G34 is a triple buffer. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- 数据手册:
库存: 0
特性
Wide supply voltage range from 2.0 V to 6.0 V
Input levels:
For 74HC3G34: CMOS level
For 74HCT3G34: TTL level
Complies with JEDEC standard no. 7 A
Symmetrical output impedance
High noise immunity
Low-power dissipation
Balanced propagation delays
Multiple package options
ESD protection:
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
Specified from -40 °C to +85 °C and -40 °C to +125 °C
