74HC10

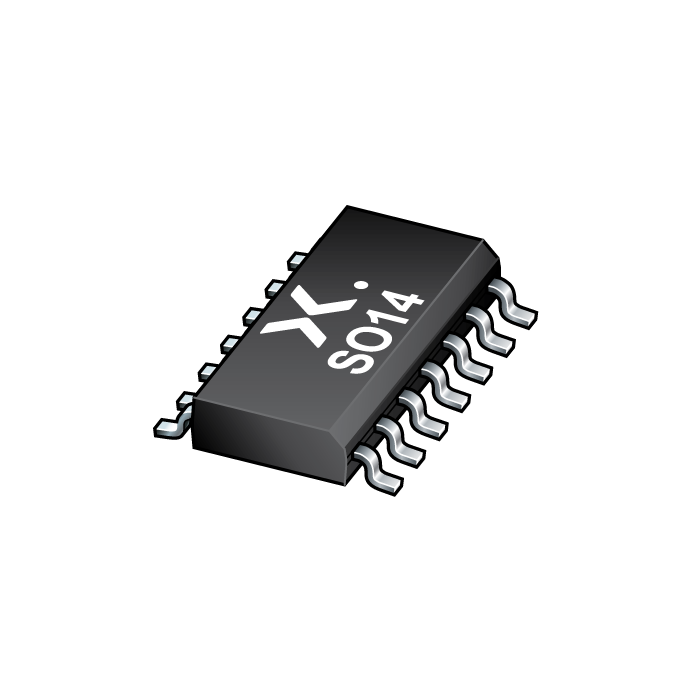

图像仅供参考
请参阅产品规格
74HC10
-
商品编号:
74HC10D,653
-
批次:
2432+
-
简述:
Triple 3-input NAND gate
-
描述:
The 74HC10; 74HCT10 is a triple 3-input NAND gate. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- 数据手册:
库存: 0
特性
Complies with JEDEC standard JESD7A
Input levels:
For74HC10: CMOS level
For 74HCT10: TTL level
Complies with JEDEC standard no. 7A
ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
Multiple package options
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
