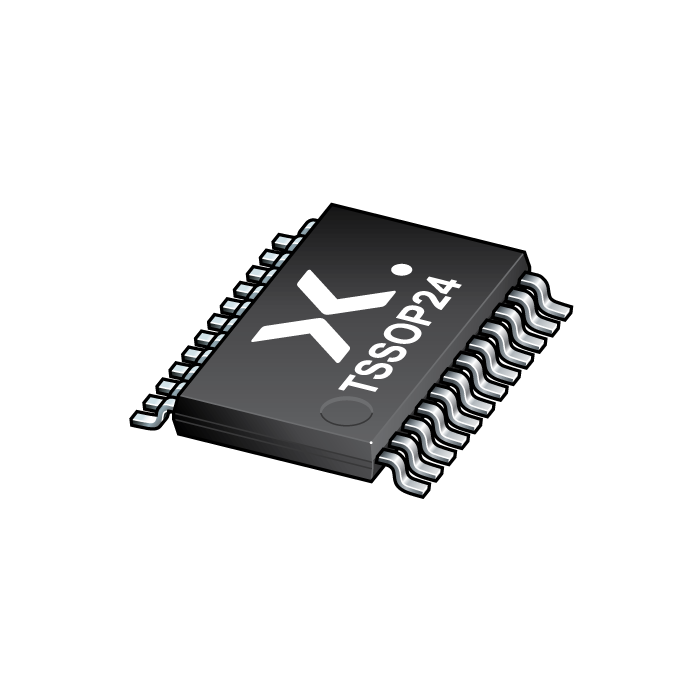

图像仅供参考
请参阅产品规格
-
商品编号:
74CBTLVD3861PW,118
-
简述:
10-bit level-shifting bus switch with output enable
-
描述:
The 74CBTLVD3861 is a 10-bit 3.3 V to 1.8 V level translating bus switch with one output enable (OE) input. When OE is LOW, the switch is closed and port A is connected to the B port. When OE is HIGH, the switch is disabled.
To ensure the high-impedance OFF-state during power-up or power-down, OE should be tied to the VCC through a pull-up resistor. The minimum value of the resistor is determined by the current-sinking capability of the driver.
Schmitt trigger action at control input makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 3.0 V to 3.6 V.
This device is fully specified for partial power-down applications using IOFF.
- 数据手册:
特性
Supply voltage range from 3.0 V to 3.6 V
High noise immunity
Complies with JEDEC standard:
JESD8-B/JESD36 (3.0 V to 3.6 V)
ESD protection:
HBM JESD22-A114F exceeds 2000 V
CDM AEC-Q100-011 revision B exceeds 1000 V
4 Ω switch connection between two ports
3.3 V to 1.8 V level translation
CMOS low power consumption
Latch-up performance exceeds 250 mA per JESD78B Class I level A
IOFF circuitry provides partial Power-down mode operation
Specified from -40 °C to +85 °C and -40 °C to +125 °C
