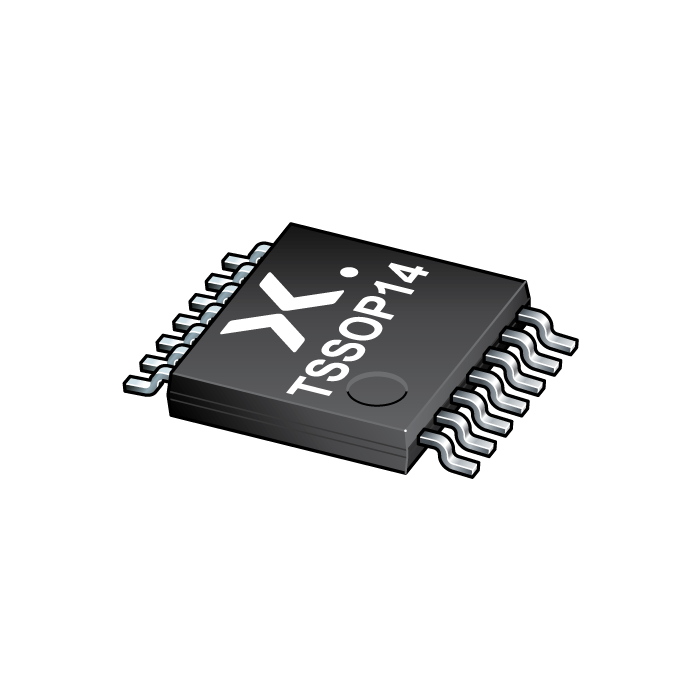

74AHCU04
图像仅供参考
请参阅产品规格
74AHCU04
-
商品编号:
74AHCU04PW,118
-
简述:
Hex unbuffered inverter
-
描述:
The 74AHCU04 is high-speed Si-gate CMOS devices and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard No. 7A.
The 74AHCU04 is a general purpose hex unbuffered inverter. Each of the six inverters is a single stage.
- 数据手册:
库存: 0
特性
Low power dissipation
Balanced propagation delays
Inputs accepts voltages higher than VCC
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
Specified from -40 °C to +125 °C
